Тестер микросхем на ATMega16/32

Вид для печати

Показывать 40 сообщений этой темы на одной странице

14.06.2018, 17:34
Andrey_Ak

Цитата:

Сообщение от Trol73

Тест ИМ1 посмотрел. Что-то слишком сложно там с многократным переконфигурированием выводов на вход/выход.. Команда CONFIG - она нужна для микросхем, у которых одни и те же выводы могут быть и входами и выходами. А тут простая логика.

Ну это нужно было для проверки отдельных элементов, вот блок-схема:

http://tis.kz/temp/ic-tester/im1.jpg

Тут выводы 10, 1 могут быть как входами так и выходами..

Сначала проверяем элемент DD1, у него два входа - 8 и 9, а номер 10 является
как-бы входом ИС но в то-же время и выходом элемента DD1, поэтому я назначаю
номер 10 выходом, и цепочкой тестов проверяю отдельно элемент DD1,
и точно так-же сразу элемент DD2:

Скрытый текст

Код:

IN: 8, 9, 12, 13 OUT: 10, 1 Тут проверяем работу элемента DD1 TEST: 0000 => 1? TEST: 0100 => 1? TEST: 1000 => 1? TEST: 1100 => 0? Тут проверяем работу элемента DD2 TEST: 0000 => ?1 TEST: 0001 => ?1 TEST: 0010 => ?1 TEST: 0011 => ?0

[свернуть]

Далее для проверки элемента DD3, 10 вывод это выход элемента DD1,
уже нужен только как вход, т.к. DD1 мы протестировали и он больше не нужен,
поэтому 10 вывод переназначаю как вход, и точно так-же для DD4:

Скрытый текст

Код:

CONFIG: 11, 10, 1, 2 -> IN ; 5, 6, 4 -> OUT Тут проверяем работу элементов DD3, DD4, первую половину DD5, первую половину DD6 TEST: 0000 => 100 TEST: 0001 => 100 TEST: 0010 => 100 TEST: 0011 => 010 TEST: 0100 => 100 TEST: 0101 => 100 TEST: 0110 => 100 TEST: 0111 => 010 TEST: 1000 => 100 TEST: 1001 => 100 TEST: 1010 => 100 TEST: 1011 => 010 TEST: 1100 => 010 TEST: 1101 => 010 TEST: 1110 => 010 TEST: 1111 => 101

[свернуть]

Ну и так-же переназначив выводы, проверяем остальное:

Скрытый текст

Код:

CONFIG: 11, 2, 3 -> IN ; 5, 6, 4 -> OUT Тут проверяем работу элементов DD5,6 ч.1 - вторую половину DD5, вторую половину DD6 TEST: 000 => 010 TEST: 001 => 100 TEST: 010 => 010 TEST: 011 => 100 TEST: 100 => 010 TEST: 101 => 100 TEST: 110 => 010 TEST: 111 => 100 CONFIG: 10, 1, 3 -> IN ; 5, 6, 4 -> OUT Тут проверяем работу элементов DD5,6 ч.2 - вторую половину DD5, вторую половину DD6 TEST: 000 => 010 TEST: 001 => 100 TEST: 010 => 101 TEST: 011 => 010 TEST: 100 => 101 TEST: 101 => 010 TEST: 110 => 011 TEST: 111 => 101

[свернуть]

--------

Цитата:

Сообщение от Trol73

В итоге нарисовалась таблица истинности, переложенная в тест:

Скрытый текст

PHP код:

CHIP[14] 'ИМ1' POWER: -7* +14* IN: 8(A1), 9(A2), 10(~A3), 11(~A4), 12(B1), 13(B2), 1(~B3), 2(~B4), 3(P1) OUT: 5(S), 6(~S), 4(P2) TEST: 0011:0011:0 => 010 TEST: 0011:1011:0 => 010 TEST: 0011:0111:0 => 010 TEST: 0011:1111:0 => 010 TEST: 0011:0001:0 => 100 TEST: 0011:1001:0 => 100 TEST: 0011:0101:0 => 100 TEST: 0011:1101:0 => 100 TEST: 0011:0010:0 => 010 TEST: 0011:1010:0 => 010 TEST: 0011:0110:0 => 010 TEST: 0011:1110:0 => 010 TEST: 0011:0000:0 => 100 TEST: 0011:1000:0 => 100 TEST: 0011:0100:0 => 100 TEST: 0011:1100:0 => 100 TEST: 1011:0011:0 => 010 TEST: 1011:1011:0 => 010 TEST: 1011:0111:0 => 100 TEST: 1011:1111:0 => 100 TEST: 1011:0001:0 => 100 TEST: 1011:1001:0 => 100 TEST: 1011:0101:0 => 100 TEST: 1011:1101:0 => 100 TEST: 1011:0010:0 => 010 TEST: 1011:1010:0 => 010 TEST: 1011:0110:0 => 100 TEST: 1011:1110:0 => 100 TEST: 1011:0000:0 => 100 TEST: 1011:1000:0 => 100 TEST: 1011:0100:0 => 100 TEST: 1011:1100:0 => 100 TEST: 0111:0011:0 => 010 TEST: 0111:1011:0 => 010 TEST: 0111:0111:0 => 010 TEST: 0111:1111:0 => 010 TEST: 0111:0001:0 => 100 TEST: 0111:1001:0 => 100 TEST: 0111:0101:0 => 100 TEST: 0111:1101:0 => 100 TEST: 0111:0010:0 => 010 TEST: 0111:1010:0 => 010 TEST: 0111:0110:0 => 010 TEST: 0111:1110:0 => 010 TEST: 0111:0000:0 => 100 TEST: 0111:1000:0 => 100 TEST: 0111:0100:0 => 100 TEST: 0111:1100:0 => 100 TEST: 1111:0011:0 => 100 TEST: 1111:1011:0 => 100 TEST: 1111:0111:0 => 011 TEST: 1111:1111:0 => 011 TEST: 1111:0001:0 => 011 TEST: 1111:1001:0 => 011 TEST: 1111:0101:0 => 011 TEST: 1111:1101:0 => 011 TEST: 1111:0010:0 => 100 TEST: 1111:1010:0 => 100 TEST: 1111:0110:0 => 011 TEST: 1111:1110:0 => 011 TEST: 1111:0000:0 => 011 TEST: 1111:1000:0 => 011 TEST: 1111:0100:0 => 011 TEST: 1111:1100:0 => 011 TEST: 0001:0011:0 => 100 TEST: 0001:1011:0 => 100 TEST: 0001:0111:0 => 100 TEST: 0001:1111:0 => 100 TEST: 0001:0001:0 => 011 TEST: 0001:1001:0 => 011 TEST: 0001:0101:0 => 011 TEST: 0001:1101:0 => 011 TEST: 0001:0010:0 => 100 TEST: 0001:1010:0 => 100 TEST: 0001:0110:0 => 100 TEST: 0001:1110:0 => 100 TEST: 0001:0000:0 => 011 TEST: 0001:1000:0 => 011 TEST: 0001:0100:0 => 011 TEST: 0001:1100:0 => 011 TEST: 1001:0011:0 => 100 TEST: 1001:1011:0 => 100 TEST: 1001:0111:0 => 011 TEST: 1001:1111:0 => 011 TEST: 1001:0001:0 => 011 TEST: 1001:1001:0 => 011 TEST: 1001:0101:0 => 011 TEST: 1001:1101:0 => 011 TEST: 1001:0010:0 => 100 TEST: 1001:1010:0 => 100 TEST: 1001:0110:0 => 011 TEST: 1001:1110:0 => 011 TEST: 1001:0000:0 => 011 TEST: 1001:1000:0 => 011 TEST: 1001:0100:0 => 011 TEST: 1001:1100:0 => 011 TEST: 0101:0011:0 => 100 TEST: 0101:1011:0 => 100 TEST: 0101:0111:0 => 100 TEST: 0101:1111:0 => 100 TEST: 0101:0001:0 => 011 TEST: 0101:1001:0 => 011 TEST: 0101:0101:0 => 011 TEST: 0101:1101:0 => 011 TEST: 0101:0010:0 => 100 TEST: 0101:1010:0 => 100 TEST: 0101:0110:0 => 100 TEST: 0101:1110:0 => 100 TEST: 0101:0000:0 => 011 TEST: 0101:1000:0 => 011 TEST: 0101:0100:0 => 011 TEST: 0101:1100:0 => 011 TEST: 1101:0011:0 => 100 TEST: 1101:1011:0 => 100 TEST: 1101:0111:0 => 011 TEST: 1101:1111:0 => 011 TEST: 1101:0001:0 => 011 TEST: 1101:1001:0 => 011 TEST: 1101:0101:0 => 011 TEST: 1101:1101:0 => 011 TEST: 1101:0010:0 => 100 TEST: 1101:1010:0 => 100 TEST: 1101:0110:0 => 011 TEST: 1101:1110:0 => 011 TEST: 1101:0000:0 => 011 TEST: 1101:1000:0 => 011 TEST: 1101:0100:0 => 011 TEST: 1101:1100:0 => 011 TEST: 0010:0011:0 => 010 TEST: 0010:1011:0 => 010 TEST: 0010:0111:0 => 010 TEST: 0010:1111:0 => 010 TEST: 0010:0001:0 => 100 TEST: 0010:1001:0 => 100 TEST: 0010:0101:0 => 100 TEST: 0010:1101:0 => 100 TEST: 0010:0010:0 => 010 TEST: 0010:1010:0 => 010 TEST: 0010:0110:0 => 010 TEST: 0010:1110:0 => 010 TEST: 0010:0000:0 => 100 TEST: 0010:1000:0 => 100 TEST: 0010:0100:0 => 100 TEST: 0010:1100:0 => 100 TEST: 1010:0011:0 => 010 TEST: 1010:1011:0 => 010 TEST: 1010:0111:0 => 100 TEST: 1010:1111:0 => 100 TEST: 1010:0001:0 => 100 TEST: 1010:1001:0 => 100 TEST: 1010:0101:0 => 100 TEST: 1010:1101:0 => 100 TEST: 1010:0010:0 => 010 TEST: 1010:1010:0 => 010 TEST: 1010:0110:0 => 100 TEST: 1010:1110:0 => 100 TEST: 1010:0000:0 => 100 TEST: 1010:1000:0 => 100 TEST: 1010:0100:0 => 100 TEST: 1010:1100:0 => 100 TEST: 0110:0011:0 => 010 TEST: 0110:1011:0 => 010 TEST: 0110:0111:0 => 010 TEST: 0110:1111:0 => 010 TEST: 0110:0001:0 => 100 TEST: 0110:1001:0 => 100 TEST: 0110:0101:0 => 100 TEST: 0110:1101:0 => 100 TEST: 0110:0010:0 => 010 TEST: 0110:1010:0 => 010 TEST: 0110:0110:0 => 010 TEST: 0110:1110:0 => 010 TEST: 0110:0000:0 => 100 TEST: 0110:1000:0 => 100 TEST: 0110:0100:0 => 100 TEST: 0110:1100:0 => 100 TEST: 1110:0011:0 => 100 TEST: 1110:1011:0 => 100 TEST: 1110:0111:0 => 011 TEST: 1110:1111:0 => 011 TEST: 1110:0001:0 => 011 TEST: 1110:1001:0 => 011 TEST: 1110:0101:0 => 011 TEST: 1110:1101:0 => 011 TEST: 1110:0010:0 => 100 TEST: 1110:1010:0 => 100 TEST: 1110:0110:0 => 011 TEST: 1110:1110:0 => 011 TEST: 1110:0000:0 => 011 TEST: 1110:1000:0 => 011 TEST: 1110:0100:0 => 011 TEST: 1110:1100:0 => 011 TEST: 0000:0011:0 => 100 TEST: 0000:1011:0 => 100 TEST: 0000:0111:0 => 100 TEST: 0000:1111:0 => 100 TEST: 0000:0001:0 => 011 TEST: 0000:1001:0 => 011 TEST: 0000:0101:0 => 011 TEST: 0000:1101:0 => 011 TEST: 0000:0010:0 => 100 TEST: 0000:1010:0 => 100 TEST: 0000:0110:0 => 100 TEST: 0000:1110:0 => 100 TEST: 0000:0000:0 => 011 TEST: 0000:1000:0 => 011 TEST: 0000:0100:0 => 011 TEST: 0000:1100:0 => 011 TEST: 1000:0011:0 => 100 TEST: 1000:1011:0 => 100 TEST: 1000:0111:0 => 011 TEST: 1000:1111:0 => 011 TEST: 1000:0001:0 => 011 TEST: 1000:1001:0 => 011 TEST: 1000:0101:0 => 011 TEST: 1000:1101:0 => 011 TEST: 1000:0010:0 => 100 TEST: 1000:1010:0 => 100 TEST: 1000:0110:0 => 011 TEST: 1000:1110:0 => 011 TEST: 1000:0000:0 => 011 TEST: 1000:1000:0 => 011 TEST: 1000:0100:0 => 011 TEST: 1000:1100:0 => 011 TEST: 0100:0011:0 => 100 TEST: 0100:1011:0 => 100 TEST: 0100:0111:0 => 100 TEST: 0100:1111:0 => 100 TEST: 0100:0001:0 => 011 TEST: 0100:1001:0 => 011 TEST: 0100:0101:0 => 011 TEST: 0100:1101:0 => 011 TEST: 0100:0010:0 => 100 TEST: 0100:1010:0 => 100 TEST: 0100:0110:0 => 100 TEST: 0100:1110:0 => 100 TEST: 0100:0000:0 => 011 TEST: 0100:1000:0 => 011 TEST: 0100:0100:0 => 011 TEST: 0100:1100:0 => 011 TEST: 1100:0011:0 => 100 TEST: 1100:1011:0 => 100 TEST: 1100:0111:0 => 011 TEST: 1100:1111:0 => 011 TEST: 1100:0001:0 => 011 TEST: 1100:1001:0 => 011 TEST: 1100:0101:0 => 011 TEST: 1100:1101:0 => 011 TEST: 1100:0010:0 => 100 TEST: 1100:1010:0 => 100 TEST: 1100:0110:0 => 011 TEST: 1100:1110:0 => 011 TEST: 1100:0000:0 => 011 TEST: 1100:1000:0 => 011 TEST: 1100:0100:0 => 011 TEST: 1100:1100:0 => 011 TEST: 0011:0011:1 => 100 TEST: 0011:1011:1 => 100 TEST: 0011:0111:1 => 100 TEST: 0011:1111:1 => 100 TEST: 0011:0001:1 => 011 TEST: 0011:1001:1 => 011 TEST: 0011:0101:1 => 011 TEST: 0011:1101:1 => 011 TEST: 0011:0010:1 => 100 TEST: 0011:1010:1 => 100 TEST: 0011:0110:1 => 100 TEST: 0011:1110:1 => 100 TEST: 0011:0000:1 => 011 TEST: 0011:1000:1 => 011 TEST: 0011:0100:1 => 011 TEST: 0011:1100:1 => 011 TEST: 1011:0011:1 => 100 TEST: 1011:1011:1 => 100 TEST: 1011:0111:1 => 011 TEST: 1011:1111:1 => 011 TEST: 1011:0001:1 => 011 TEST: 1011:1001:1 => 011 TEST: 1011:0101:1 => 011 TEST: 1011:1101:1 => 011 TEST: 1011:0010:1 => 100 TEST: 1011:1010:1 => 100 TEST: 1011:0110:1 => 011 TEST: 1011:1110:1 => 011 TEST: 1011:0000:1 => 011 TEST: 1011:1000:1 => 011 TEST: 1011:0100:1 => 011 TEST: 1011:1100:1 => 011 TEST: 0111:0011:1 => 100 TEST: 0111:1011:1 => 100 TEST: 0111:0111:1 => 100 TEST: 0111:1111:1 => 100 TEST: 0111:0001:1 => 011 TEST: 0111:1001:1 => 011 TEST: 0111:0101:1 => 011 TEST: 0111:1101:1 => 011 TEST: 0111:0010:1 => 100 TEST: 0111:1010:1 => 100 TEST: 0111:0110:1 => 100 TEST: 0111:1110:1 => 100 TEST: 0111:0000:1 => 011 TEST: 0111:1000:1 => 011 TEST: 0111:0100:1 => 011 TEST: 0111:1100:1 => 011 TEST: 1111:0011:1 => 011 TEST: 1111:1011:1 => 011 TEST: 1111:0111:1 => 101 TEST: 1111:1111:1 => 101 TEST: 1111:0001:1 => 101 TEST: 1111:1001:1 => 101 TEST: 1111:0101:1 => 101 TEST: 1111:1101:1 => 101 TEST: 1111:0010:1 => 011 TEST: 1111:1010:1 => 011 TEST: 1111:0110:1 => 101 TEST: 1111:1110:1 => 101 TEST: 1111:0000:1 => 101 TEST: 1111:1000:1 => 101 TEST: 1111:0100:1 => 101 TEST: 1111:1100:1 => 101 TEST: 0001:0011:1 => 011 TEST: 0001:1011:1 => 011 TEST: 0001:0111:1 => 011 TEST: 0001:1111:1 => 011 TEST: 0001:0001:1 => 101 TEST: 0001:1001:1 => 101 TEST: 0001:0101:1 => 101 TEST: 0001:1101:1 => 101 TEST: 0001:0010:1 => 011 TEST: 0001:1010:1 => 011 TEST: 0001:0110:1 => 011 TEST: 0001:1110:1 => 011 TEST: 0001:0000:1 => 101 TEST: 0001:1000:1 => 101 TEST: 0001:0100:1 => 101 TEST: 0001:1100:1 => 101 TEST: 1001:0011:1 => 011 TEST: 1001:1011:1 => 011 TEST: 1001:0111:1 => 101 TEST: 1001:1111:1 => 101 TEST: 1001:0001:1 => 101 TEST: 1001:1001:1 => 101 TEST: 1001:0101:1 => 101 TEST: 1001:1101:1 => 101 TEST: 1001:0010:1 => 011 TEST: 1001:1010:1 => 011 TEST: 1001:0110:1 => 101 TEST: 1001:1110:1 => 101 TEST: 1001:0000:1 => 101 TEST: 1001:1000:1 => 101 TEST: 1001:0100:1 => 101 TEST: 1001:1100:1 => 101 TEST: 0101:0011:1 => 011 TEST: 0101:1011:1 => 011 TEST: 0101:0111:1 => 011 TEST: 0101:1111:1 => 011 TEST: 0101:0001:1 => 101 TEST: 0101:1001:1 => 101 TEST: 0101:0101:1 => 101 TEST: 0101:1101:1 => 101 TEST: 0101:0010:1 => 011 TEST: 0101:1010:1 => 011 TEST: 0101:0110:1 => 011 TEST: 0101:1110:1 => 011 TEST: 0101:0000:1 => 101 TEST: 0101:1000:1 => 101 TEST: 0101:0100:1 => 101 TEST: 0101:1100:1 => 101 TEST: 1101:0011:1 => 011 TEST: 1101:1011:1 => 011 TEST: 1101:0111:1 => 101 TEST: 1101:1111:1 => 101 TEST: 1101:0001:1 => 101 TEST: 1101:1001:1 => 101 TEST: 1101:0101:1 => 101 TEST: 1101:1101:1 => 101 TEST: 1101:0010:1 => 011 TEST: 1101:1010:1 => 011 TEST: 1101:0110:1 => 101 TEST: 1101:1110:1 => 101 TEST: 1101:0000:1 => 101 TEST: 1101:1000:1 => 101 TEST: 1101:0100:1 => 101 TEST: 1101:1100:1 => 101 TEST: 0010:0011:1 => 100 TEST: 0010:1011:1 => 100 TEST: 0010:0111:1 => 100 TEST: 0010:1111:1 => 100 TEST: 0010:0001:1 => 011 TEST: 0010:1001:1 => 011 TEST: 0010:0101:1 => 011 TEST: 0010:1101:1 => 011 TEST: 0010:0010:1 => 100 TEST: 0010:1010:1 => 100 TEST: 0010:0110:1 => 100 TEST: 0010:1110:1 => 100 TEST: 0010:0000:1 => 011 TEST: 0010:1000:1 => 011 TEST: 0010:0100:1 => 011 TEST: 0010:1100:1 => 011 TEST: 1010:0011:1 => 100 TEST: 1010:1011:1 => 100 TEST: 1010:0111:1 => 011 TEST: 1010:1111:1 => 011 TEST: 1010:0001:1 => 011 TEST: 1010:1001:1 => 011 TEST: 1010:0101:1 => 011 TEST: 1010:1101:1 => 011 TEST: 1010:0010:1 => 100 TEST: 1010:1010:1 => 100 TEST: 1010:0110:1 => 011 TEST: 1010:1110:1 => 011 TEST: 1010:0000:1 => 011 TEST: 1010:1000:1 => 011 TEST: 1010:0100:1 => 011 TEST: 1010:1100:1 => 011 TEST: 0110:0011:1 => 100 TEST: 0110:1011:1 => 100 TEST: 0110:0111:1 => 100 TEST: 0110:1111:1 => 100 TEST: 0110:0001:1 => 011 TEST: 0110:1001:1 => 011 TEST: 0110:0101:1 => 011 TEST: 0110:1101:1 => 011 TEST: 0110:0010:1 => 100 TEST: 0110:1010:1 => 100 TEST: 0110:0110:1 => 100 TEST: 0110:1110:1 => 100 TEST: 0110:0000:1 => 011 TEST: 0110:1000:1 => 011 TEST: 0110:0100:1 => 011 TEST: 0110:1100:1 => 011 TEST: 1110:0011:1 => 011 TEST: 1110:1011:1 => 011 TEST: 1110:0111:1 => 101 TEST: 1110:1111:1 => 101 TEST: 1110:0001:1 => 101 TEST: 1110:1001:1 => 101 TEST: 1110:0101:1 => 101 TEST: 1110:1101:1 => 101 TEST: 1110:0010:1 => 011 TEST: 1110:1010:1 => 011 TEST: 1110:0110:1 => 101 TEST: 1110:1110:1 => 101 TEST: 1110:0000:1 => 101 TEST: 1110:1000:1 => 101 TEST: 1110:0100:1 => 101 TEST: 1110:1100:1 => 101 TEST: 0000:0011:1 => 011 TEST: 0000:1011:1 => 011 TEST: 0000:0111:1 => 011 TEST: 0000:1111:1 => 011 TEST: 0000:0001:1 => 101 TEST: 0000:1001:1 => 101 TEST: 0000:0101:1 => 101 TEST: 0000:1101:1 => 101 TEST: 0000:0010:1 => 011 TEST: 0000:1010:1 => 011 TEST: 0000:0110:1 => 011 TEST: 0000:1110:1 => 011 TEST: 0000:0000:1 => 101 TEST: 0000:1000:1 => 101 TEST: 0000:0100:1 => 101 TEST: 0000:1100:1 => 101 TEST: 1000:0011:1 => 011 TEST: 1000:1011:1 => 011 TEST: 1000:0111:1 => 101 TEST: 1000:1111:1 => 101 TEST: 1000:0001:1 => 101 TEST: 1000:1001:1 => 101 TEST: 1000:0101:1 => 101 TEST: 1000:1101:1 => 101 TEST: 1000:0010:1 => 011 TEST: 1000:1010:1 => 011 TEST: 1000:0110:1 => 101 TEST: 1000:1110:1 => 101 TEST: 1000:0000:1 => 101 TEST: 1000:1000:1 => 101 TEST: 1000:0100:1 => 101 TEST: 1000:1100:1 => 101 TEST: 0100:0011:1 => 011 TEST: 0100:1011:1 => 011 TEST: 0100:0111:1 => 011 TEST: 0100:1111:1 => 011 TEST: 0100:0001:1 => 101 TEST: 0100:1001:1 => 101 TEST: 0100:0101:1 => 101 TEST: 0100:1101:1 => 101 TEST: 0100:0010:1 => 011 TEST: 0100:1010:1 => 011 TEST: 0100:0110:1 => 011 TEST: 0100:1110:1 => 011 TEST: 0100:0000:1 => 101 TEST: 0100:1000:1 => 101 TEST: 0100:0100:1 => 101 TEST: 0100:1100:1 => 101 TEST: 1100:0011:1 => 011 TEST: 1100:1011:1 => 011 TEST: 1100:0111:1 => 101 TEST: 1100:1111:1 => 101 TEST: 1100:0001:1 => 101 TEST: 1100:1001:1 => 101 TEST: 1100:0101:1 => 101 TEST: 1100:1101:1 => 101 TEST: 1100:0010:1 => 011 TEST: 1100:1010:1 => 011 TEST: 1100:0110:1 => 101 TEST: 1100:1110:1 => 101 TEST: 1100:0000:1 => 101 TEST: 1100:1000:1 => 101 TEST: 1100:0100:1 => 101 TEST: 1100:1100:1 => 101

[свернуть]

Если всё верно, то из 512 проверок можно будет поубирать часть, так, чтобы участвовали все выводы.

Из всех 512 тестов прошли успешно только эти:

Скрытый текст

Код:

CMD_POWER_MINUS, 7, CMD_POWER_PLUS, 40, CMD_INIT_16, 0b01000111, 0b11111110, CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011111, 0b10101011, 0b11011111,// TEST: 1111:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11111111, 0b10101011, 0b11111111,// TEST: 1111:1111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001001, 0b10100001, 0b10001001,// TEST: 0010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101001, 0b10100001, 0b10101001,// TEST: 0010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001001, 0b10100001, 0b11001001,// TEST: 0010:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101001, 0b10100001, 0b11101001,// TEST: 0010:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001011, 0b10100001, 0b10001011,// TEST: 1010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101011, 0b10100001, 0b10101011,// TEST: 1010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001101, 0b10100001, 0b10001101,// TEST: 0110:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101101, 0b10100001, 0b10101101,// TEST: 0110:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001101, 0b10100001, 0b11001101,// TEST: 0110:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101101, 0b10100001, 0b11101101,// TEST: 0110:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011111, 0b10011111, 0b11011111,// TEST: 1111:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11111111, 0b10011111, 0b11111111,// TEST: 1111:1111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001001, 0b10010101, 0b10001001,// TEST: 0010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101001, 0b10010101, 0b10101001,// TEST: 0010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001001, 0b10010101, 0b11001001,// TEST: 0010:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101001, 0b10010101, 0b11101001,// TEST: 0010:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001011, 0b10010101, 0b10001011,// TEST: 1010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101011, 0b10010101, 0b10101011,// TEST: 1010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001101, 0b10010101, 0b10001101,// TEST: 0110:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101101, 0b10010101, 0b10101101,// TEST: 0110:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001101, 0b10010101, 0b11001101,// TEST: 0110:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101101, 0b10010101, 0b11101101,// TEST: 0110:1110:1 => 100

[свернуть]
14.06.2018, 20:50
Reobne

Цитата:

Сообщение от Andrey_Ak

TEST: 1111:0011:0 => 100

Это получается сразу на ноги 8 и 9 подаётся 1, и при этом нога 10 тоже используется как вход? Кажется так нельзя.

- - - Добавлено - - -

Понятно, что сигнал на ногу 10 от тестера, через резистор, проиграет выходному сигналу с DD1. Но всё таки, может как-то покрасивее можно. :)
14.06.2018, 21:12
Trol73

Цитата:

Сообщение от Andrey_Ak

Ну это нужно было для проверки отдельных элементов, вот блок-схема:
...

Тут мы имеем простую логическую микросхему с 9 входами и тремя выходами. Даже если нам известна внутренняя схема МС, это внутреннее устройство не должно ложиться в основу теста.
К тому же, если выход DD1 подключён к одному из входов, то другие внутренние выходы нам не доступны.
По-хорошему, тут надо понять таблицу истинности МС и написать тесты по ней.

А можете сделать скриншоты нескольких непрошедших команд в отладчике?
15.06.2018, 11:55
Andrey_Ak

Цитата:

Сообщение от Trol73

Тут мы имеем простую логическую микросхему с 9 входами и тремя выходами. Даже если нам известна внутренняя схема МС, это внутреннее устройство не должно ложиться в основу теста.
К тому же, если выход DD1 подключён к одному из входов, то другие внутренние выходы нам не доступны.
По-хорошему, тут надо понять таблицу истинности МС и написать тесты по ней.

А можете сделать скриншоты нескольких непрошедших команд в отладчике?

http://tis.kz/temp/2018-06-15_14-44-35.flv
15.06.2018, 13:39
Trol73

На схеме ИМ1, кстати, ошибка (в подключении DD6 пропал один вывод)
http://kazus.ru/forums/attachment.ph...0&d=1326458563
15.06.2018, 13:44
Andrey_Ak

Цитата:

Сообщение от Trol73

На схеме ИМ1, кстати, ошибка (в подключении DD6 пропал один вывод)

А может он там и не нужен, точнее не предусмотрен.. ?
15.06.2018, 14:01
Trol73

Там ошибка в схеме. У DD6 5 выводов вместо 6. В варианте, что я приложил, 6 выводов.

В своём скрипте тоже нашёл пару ошибок, исправил:

Скрытый текст

PHP код:

CHIP[14] 'ИМ1' POWER: -7* +14* IN: 8(A1), 9(A2), 10(~A3), 11(~A4), 12(B1), 13(B2), 1(~B3), 2(~B4), 3(P1) OUT: 5(S), 6(~S), 4(P2) TEST: 0011:0011:0 => 011 TEST: 0011:1011:0 => 011 TEST: 0011:0111:0 => 011 TEST: 0011:1111:0 => 101 TEST: 0011:0001:0 => 011 TEST: 0011:1001:0 => 011 TEST: 0011:0101:0 => 011 TEST: 0011:1101:0 => 101 TEST: 0011:0010:0 => 101 TEST: 0011:1010:0 => 101 TEST: 0011:0110:0 => 101 TEST: 0011:1110:0 => 101 TEST: 0011:0000:0 => 101 TEST: 0011:1000:0 => 101 TEST: 0011:0100:0 => 101 TEST: 0011:1100:0 => 101 TEST: 1011:0011:0 => 011 TEST: 1011:1011:0 => 011 TEST: 1011:0111:0 => 011 TEST: 1011:1111:0 => 101 TEST: 1011:0001:0 => 011 TEST: 1011:1001:0 => 011 TEST: 1011:0101:0 => 011 TEST: 1011:1101:0 => 101 TEST: 1011:0010:0 => 101 TEST: 1011:1010:0 => 101 TEST: 1011:0110:0 => 101 TEST: 1011:1110:0 => 101 TEST: 1011:0000:0 => 101 TEST: 1011:1000:0 => 101 TEST: 1011:0100:0 => 101 TEST: 1011:1100:0 => 101 TEST: 0111:0011:0 => 011 TEST: 0111:1011:0 => 011 TEST: 0111:0111:0 => 011 TEST: 0111:1111:0 => 101 TEST: 0111:0001:0 => 011 TEST: 0111:1001:0 => 011 TEST: 0111:0101:0 => 011 TEST: 0111:1101:0 => 101 TEST: 0111:0010:0 => 101 TEST: 0111:1010:0 => 101 TEST: 0111:0110:0 => 101 TEST: 0111:1110:0 => 101 TEST: 0111:0000:0 => 101 TEST: 0111:1000:0 => 101 TEST: 0111:0100:0 => 101 TEST: 0111:1100:0 => 101 TEST: 1111:0011:0 => 101 TEST: 1111:1011:0 => 101 TEST: 1111:0111:0 => 101 TEST: 1111:1111:0 => 010 TEST: 1111:0001:0 => 101 TEST: 1111:1001:0 => 101 TEST: 1111:0101:0 => 101 TEST: 1111:1101:0 => 010 TEST: 1111:0010:0 => 010 TEST: 1111:1010:0 => 010 TEST: 1111:0110:0 => 010 TEST: 1111:1110:0 => 010 TEST: 1111:0000:0 => 010 TEST: 1111:1000:0 => 010 TEST: 1111:0100:0 => 010 TEST: 1111:1100:0 => 010 TEST: 0001:0011:0 => 011 TEST: 0001:1011:0 => 011 TEST: 0001:0111:0 => 011 TEST: 0001:1111:0 => 101 TEST: 0001:0001:0 => 011 TEST: 0001:1001:0 => 011 TEST: 0001:0101:0 => 011 TEST: 0001:1101:0 => 101 TEST: 0001:0010:0 => 101 TEST: 0001:1010:0 => 101 TEST: 0001:0110:0 => 101 TEST: 0001:1110:0 => 101 TEST: 0001:0000:0 => 101 TEST: 0001:1000:0 => 101 TEST: 0001:0100:0 => 101 TEST: 0001:1100:0 => 101 TEST: 1001:0011:0 => 011 TEST: 1001:1011:0 => 011 TEST: 1001:0111:0 => 011 TEST: 1001:1111:0 => 101 TEST: 1001:0001:0 => 011 TEST: 1001:1001:0 => 011 TEST: 1001:0101:0 => 011 TEST: 1001:1101:0 => 101 TEST: 1001:0010:0 => 101 TEST: 1001:1010:0 => 101 TEST: 1001:0110:0 => 101 TEST: 1001:1110:0 => 101 TEST: 1001:0000:0 => 101 TEST: 1001:1000:0 => 101 TEST: 1001:0100:0 => 101 TEST: 1001:1100:0 => 101 TEST: 0101:0011:0 => 011 TEST: 0101:1011:0 => 011 TEST: 0101:0111:0 => 011 TEST: 0101:1111:0 => 101 TEST: 0101:0001:0 => 011 TEST: 0101:1001:0 => 011 TEST: 0101:0101:0 => 011 TEST: 0101:1101:0 => 101 TEST: 0101:0010:0 => 101 TEST: 0101:1010:0 => 101 TEST: 0101:0110:0 => 101 TEST: 0101:1110:0 => 101 TEST: 0101:0000:0 => 101 TEST: 0101:1000:0 => 101 TEST: 0101:0100:0 => 101 TEST: 0101:1100:0 => 101 TEST: 1101:0011:0 => 101 TEST: 1101:1011:0 => 101 TEST: 1101:0111:0 => 101 TEST: 1101:1111:0 => 010 TEST: 1101:0001:0 => 101 TEST: 1101:1001:0 => 101 TEST: 1101:0101:0 => 101 TEST: 1101:1101:0 => 010 TEST: 1101:0010:0 => 010 TEST: 1101:1010:0 => 010 TEST: 1101:0110:0 => 010 TEST: 1101:1110:0 => 010 TEST: 1101:0000:0 => 010 TEST: 1101:1000:0 => 010 TEST: 1101:0100:0 => 010 TEST: 1101:1100:0 => 010 TEST: 0010:0011:0 => 101 TEST: 0010:1011:0 => 101 TEST: 0010:0111:0 => 101 TEST: 0010:1111:0 => 010 TEST: 0010:0001:0 => 101 TEST: 0010:1001:0 => 101 TEST: 0010:0101:0 => 101 TEST: 0010:1101:0 => 010 TEST: 0010:0010:0 => 010 TEST: 0010:1010:0 => 010 TEST: 0010:0110:0 => 010 TEST: 0010:1110:0 => 010 TEST: 0010:0000:0 => 010 TEST: 0010:1000:0 => 010 TEST: 0010:0100:0 => 010 TEST: 0010:1100:0 => 010 TEST: 1010:0011:0 => 101 TEST: 1010:1011:0 => 101 TEST: 1010:0111:0 => 101 TEST: 1010:1111:0 => 010 TEST: 1010:0001:0 => 101 TEST: 1010:1001:0 => 101 TEST: 1010:0101:0 => 101 TEST: 1010:1101:0 => 010 TEST: 1010:0010:0 => 010 TEST: 1010:1010:0 => 010 TEST: 1010:0110:0 => 010 TEST: 1010:1110:0 => 010 TEST: 1010:0000:0 => 010 TEST: 1010:1000:0 => 010 TEST: 1010:0100:0 => 010 TEST: 1010:1100:0 => 010 TEST: 0110:0011:0 => 101 TEST: 0110:1011:0 => 101 TEST: 0110:0111:0 => 101 TEST: 0110:1111:0 => 010 TEST: 0110:0001:0 => 101 TEST: 0110:1001:0 => 101 TEST: 0110:0101:0 => 101 TEST: 0110:1101:0 => 010 TEST: 0110:0010:0 => 010 TEST: 0110:1010:0 => 010 TEST: 0110:0110:0 => 010 TEST: 0110:1110:0 => 010 TEST: 0110:0000:0 => 010 TEST: 0110:1000:0 => 010 TEST: 0110:0100:0 => 010 TEST: 0110:1100:0 => 010 TEST: 1110:0011:0 => 101 TEST: 1110:1011:0 => 101 TEST: 1110:0111:0 => 101 TEST: 1110:1111:0 => 010 TEST: 1110:0001:0 => 101 TEST: 1110:1001:0 => 101 TEST: 1110:0101:0 => 101 TEST: 1110:1101:0 => 010 TEST: 1110:0010:0 => 010 TEST: 1110:1010:0 => 010 TEST: 1110:0110:0 => 010 TEST: 1110:1110:0 => 010 TEST: 1110:0000:0 => 010 TEST: 1110:1000:0 => 010 TEST: 1110:0100:0 => 010 TEST: 1110:1100:0 => 010 TEST: 0000:0011:0 => 101 TEST: 0000:1011:0 => 101 TEST: 0000:0111:0 => 101 TEST: 0000:1111:0 => 010 TEST: 0000:0001:0 => 101 TEST: 0000:1001:0 => 101 TEST: 0000:0101:0 => 101 TEST: 0000:1101:0 => 010 TEST: 0000:0010:0 => 010 TEST: 0000:1010:0 => 010 TEST: 0000:0110:0 => 010 TEST: 0000:1110:0 => 010 TEST: 0000:0000:0 => 010 TEST: 0000:1000:0 => 010 TEST: 0000:0100:0 => 010 TEST: 0000:1100:0 => 010 TEST: 1000:0011:0 => 101 TEST: 1000:1011:0 => 101 TEST: 1000:0111:0 => 101 TEST: 1000:1111:0 => 010 TEST: 1000:0001:0 => 101 TEST: 1000:1001:0 => 101 TEST: 1000:0101:0 => 101 TEST: 1000:1101:0 => 010 TEST: 1000:0010:0 => 010 TEST: 1000:1010:0 => 010 TEST: 1000:0110:0 => 010 TEST: 1000:1110:0 => 010 TEST: 1000:0000:0 => 010 TEST: 1000:1000:0 => 010 TEST: 1000:0100:0 => 010 TEST: 1000:1100:0 => 010 TEST: 0100:0011:0 => 101 TEST: 0100:1011:0 => 101 TEST: 0100:0111:0 => 101 TEST: 0100:1111:0 => 010 TEST: 0100:0001:0 => 101 TEST: 0100:1001:0 => 101 TEST: 0100:0101:0 => 101 TEST: 0100:1101:0 => 010 TEST: 0100:0010:0 => 010 TEST: 0100:1010:0 => 010 TEST: 0100:0110:0 => 010 TEST: 0100:1110:0 => 010 TEST: 0100:0000:0 => 010 TEST: 0100:1000:0 => 010 TEST: 0100:0100:0 => 010 TEST: 0100:1100:0 => 010 TEST: 1100:0011:0 => 101 TEST: 1100:1011:0 => 101 TEST: 1100:0111:0 => 101 TEST: 1100:1111:0 => 010 TEST: 1100:0001:0 => 101 TEST: 1100:1001:0 => 101 TEST: 1100:0101:0 => 101 TEST: 1100:1101:0 => 010 TEST: 1100:0010:0 => 010 TEST: 1100:1010:0 => 010 TEST: 1100:0110:0 => 010 TEST: 1100:1110:0 => 010 TEST: 1100:0000:0 => 010 TEST: 1100:1000:0 => 010 TEST: 1100:0100:0 => 010 TEST: 1100:1100:0 => 010 TEST: 0011:0011:1 => 101 TEST: 0011:1011:1 => 101 TEST: 0011:0111:1 => 101 TEST: 0011:1111:1 => 010 TEST: 0011:0001:1 => 101 TEST: 0011:1001:1 => 101 TEST: 0011:0101:1 => 101 TEST: 0011:1101:1 => 010 TEST: 0011:0010:1 => 010 TEST: 0011:1010:1 => 010 TEST: 0011:0110:1 => 010 TEST: 0011:1110:1 => 010 TEST: 0011:0000:1 => 010 TEST: 0011:1000:1 => 010 TEST: 0011:0100:1 => 010 TEST: 0011:1100:1 => 010 TEST: 1011:0011:1 => 101 TEST: 1011:1011:1 => 101 TEST: 1011:0111:1 => 101 TEST: 1011:1111:1 => 010 TEST: 1011:0001:1 => 101 TEST: 1011:1001:1 => 101 TEST: 1011:0101:1 => 101 TEST: 1011:1101:1 => 010 TEST: 1011:0010:1 => 010 TEST: 1011:1010:1 => 010 TEST: 1011:0110:1 => 010 TEST: 1011:1110:1 => 010 TEST: 1011:0000:1 => 010 TEST: 1011:1000:1 => 010 TEST: 1011:0100:1 => 010 TEST: 1011:1100:1 => 010 TEST: 0111:0011:1 => 101 TEST: 0111:1011:1 => 101 TEST: 0111:0111:1 => 101 TEST: 0111:1111:1 => 010 TEST: 0111:0001:1 => 101 TEST: 0111:1001:1 => 101 TEST: 0111:0101:1 => 101 TEST: 0111:1101:1 => 010 TEST: 0111:0010:1 => 010 TEST: 0111:1010:1 => 010 TEST: 0111:0110:1 => 010 TEST: 0111:1110:1 => 010 TEST: 0111:0000:1 => 010 TEST: 0111:1000:1 => 010 TEST: 0111:0100:1 => 010 TEST: 0111:1100:1 => 010 TEST: 1111:0011:1 => 010 TEST: 1111:1011:1 => 010 TEST: 1111:0111:1 => 010 TEST: 1111:1111:1 => 100 TEST: 1111:0001:1 => 010 TEST: 1111:1001:1 => 010 TEST: 1111:0101:1 => 010 TEST: 1111:1101:1 => 100 TEST: 1111:0010:1 => 100 TEST: 1111:1010:1 => 100 TEST: 1111:0110:1 => 100 TEST: 1111:1110:1 => 100 TEST: 1111:0000:1 => 100 TEST: 1111:1000:1 => 100 TEST: 1111:0100:1 => 100 TEST: 1111:1100:1 => 100 TEST: 0001:0011:1 => 101 TEST: 0001:1011:1 => 101 TEST: 0001:0111:1 => 101 TEST: 0001:1111:1 => 010 TEST: 0001:0001:1 => 101 TEST: 0001:1001:1 => 101 TEST: 0001:0101:1 => 101 TEST: 0001:1101:1 => 010 TEST: 0001:0010:1 => 010 TEST: 0001:1010:1 => 010 TEST: 0001:0110:1 => 010 TEST: 0001:1110:1 => 010 TEST: 0001:0000:1 => 010 TEST: 0001:1000:1 => 010 TEST: 0001:0100:1 => 010 TEST: 0001:1100:1 => 010 TEST: 1001:0011:1 => 101 TEST: 1001:1011:1 => 101 TEST: 1001:0111:1 => 101 TEST: 1001:1111:1 => 010 TEST: 1001:0001:1 => 101 TEST: 1001:1001:1 => 101 TEST: 1001:0101:1 => 101 TEST: 1001:1101:1 => 010 TEST: 1001:0010:1 => 010 TEST: 1001:1010:1 => 010 TEST: 1001:0110:1 => 010 TEST: 1001:1110:1 => 010 TEST: 1001:0000:1 => 010 TEST: 1001:1000:1 => 010 TEST: 1001:0100:1 => 010 TEST: 1001:1100:1 => 010 TEST: 0101:0011:1 => 101 TEST: 0101:1011:1 => 101 TEST: 0101:0111:1 => 101 TEST: 0101:1111:1 => 010 TEST: 0101:0001:1 => 101 TEST: 0101:1001:1 => 101 TEST: 0101:0101:1 => 101 TEST: 0101:1101:1 => 010 TEST: 0101:0010:1 => 010 TEST: 0101:1010:1 => 010 TEST: 0101:0110:1 => 010 TEST: 0101:1110:1 => 010 TEST: 0101:0000:1 => 010 TEST: 0101:1000:1 => 010 TEST: 0101:0100:1 => 010 TEST: 0101:1100:1 => 010 TEST: 1101:0011:1 => 010 TEST: 1101:1011:1 => 010 TEST: 1101:0111:1 => 010 TEST: 1101:1111:1 => 100 TEST: 1101:0001:1 => 010 TEST: 1101:1001:1 => 010 TEST: 1101:0101:1 => 010 TEST: 1101:1101:1 => 100 TEST: 1101:0010:1 => 100 TEST: 1101:1010:1 => 100 TEST: 1101:0110:1 => 100 TEST: 1101:1110:1 => 100 TEST: 1101:0000:1 => 100 TEST: 1101:1000:1 => 100 TEST: 1101:0100:1 => 100 TEST: 1101:1100:1 => 100 TEST: 0010:0011:1 => 010 TEST: 0010:1011:1 => 010 TEST: 0010:0111:1 => 010 TEST: 0010:1111:1 => 100 TEST: 0010:0001:1 => 010 TEST: 0010:1001:1 => 010 TEST: 0010:0101:1 => 010 TEST: 0010:1101:1 => 100 TEST: 0010:0010:1 => 100 TEST: 0010:1010:1 => 100 TEST: 0010:0110:1 => 100 TEST: 0010:1110:1 => 100 TEST: 0010:0000:1 => 100 TEST: 0010:1000:1 => 100 TEST: 0010:0100:1 => 100 TEST: 0010:1100:1 => 100 TEST: 1010:0011:1 => 010 TEST: 1010:1011:1 => 010 TEST: 1010:0111:1 => 010 TEST: 1010:1111:1 => 100 TEST: 1010:0001:1 => 010 TEST: 1010:1001:1 => 010 TEST: 1010:0101:1 => 010 TEST: 1010:1101:1 => 100 TEST: 1010:0010:1 => 100 TEST: 1010:1010:1 => 100 TEST: 1010:0110:1 => 100 TEST: 1010:1110:1 => 100 TEST: 1010:0000:1 => 100 TEST: 1010:1000:1 => 100 TEST: 1010:0100:1 => 100 TEST: 1010:1100:1 => 100 TEST: 0110:0011:1 => 010 TEST: 0110:1011:1 => 010 TEST: 0110:0111:1 => 010 TEST: 0110:1111:1 => 100 TEST: 0110:0001:1 => 010 TEST: 0110:1001:1 => 010 TEST: 0110:0101:1 => 010 TEST: 0110:1101:1 => 100 TEST: 0110:0010:1 => 100 TEST: 0110:1010:1 => 100 TEST: 0110:0110:1 => 100 TEST: 0110:1110:1 => 100 TEST: 0110:0000:1 => 100 TEST: 0110:1000:1 => 100 TEST: 0110:0100:1 => 100 TEST: 0110:1100:1 => 100 TEST: 1110:0011:1 => 010 TEST: 1110:1011:1 => 010 TEST: 1110:0111:1 => 010 TEST: 1110:1111:1 => 100 TEST: 1110:0001:1 => 010 TEST: 1110:1001:1 => 010 TEST: 1110:0101:1 => 010 TEST: 1110:1101:1 => 100 TEST: 1110:0010:1 => 100 TEST: 1110:1010:1 => 100 TEST: 1110:0110:1 => 100 TEST: 1110:1110:1 => 100 TEST: 1110:0000:1 => 100 TEST: 1110:1000:1 => 100 TEST: 1110:0100:1 => 100 TEST: 1110:1100:1 => 100 TEST: 0000:0011:1 => 010 TEST: 0000:1011:1 => 010 TEST: 0000:0111:1 => 010 TEST: 0000:1111:1 => 100 TEST: 0000:0001:1 => 010 TEST: 0000:1001:1 => 010 TEST: 0000:0101:1 => 010 TEST: 0000:1101:1 => 100 TEST: 0000:0010:1 => 100 TEST: 0000:1010:1 => 100 TEST: 0000:0110:1 => 100 TEST: 0000:1110:1 => 100 TEST: 0000:0000:1 => 100 TEST: 0000:1000:1 => 100 TEST: 0000:0100:1 => 100 TEST: 0000:1100:1 => 100 TEST: 1000:0011:1 => 010 TEST: 1000:1011:1 => 010 TEST: 1000:0111:1 => 010 TEST: 1000:1111:1 => 100 TEST: 1000:0001:1 => 010 TEST: 1000:1001:1 => 010 TEST: 1000:0101:1 => 010 TEST: 1000:1101:1 => 100 TEST: 1000:0010:1 => 100 TEST: 1000:1010:1 => 100 TEST: 1000:0110:1 => 100 TEST: 1000:1110:1 => 100 TEST: 1000:0000:1 => 100 TEST: 1000:1000:1 => 100 TEST: 1000:0100:1 => 100 TEST: 1000:1100:1 => 100 TEST: 0100:0011:1 => 010 TEST: 0100:1011:1 => 010 TEST: 0100:0111:1 => 010 TEST: 0100:1111:1 => 100 TEST: 0100:0001:1 => 010 TEST: 0100:1001:1 => 010 TEST: 0100:0101:1 => 010 TEST: 0100:1101:1 => 100 TEST: 0100:0010:1 => 100 TEST: 0100:1010:1 => 100 TEST: 0100:0110:1 => 100 TEST: 0100:1110:1 => 100 TEST: 0100:0000:1 => 100 TEST: 0100:1000:1 => 100 TEST: 0100:0100:1 => 100 TEST: 0100:1100:1 => 100 TEST: 1100:0011:1 => 010 TEST: 1100:1011:1 => 010 TEST: 1100:0111:1 => 010 TEST: 1100:1111:1 => 100 TEST: 1100:0001:1 => 010 TEST: 1100:1001:1 => 010 TEST: 1100:0101:1 => 010 TEST: 1100:1101:1 => 100 TEST: 1100:0010:1 => 100 TEST: 1100:1010:1 => 100 TEST: 1100:0110:1 => 100 TEST: 1100:1110:1 => 100 TEST: 1100:0000:1 => 100 TEST: 1100:1000:1 => 100 TEST: 1100:0100:1 => 100 TEST: 1100:1100:1 => 100

[свернуть]
16.06.2018, 00:42
Andrey_Ak

Цитата:

Сообщение от Trol73

Там ошибка в схеме. У DD6 5 выводов вместо 6. В варианте, что я приложил, 6 выводов.

В своём скрипте тоже нашёл пару ошибок, исправил:

Скрытый текст

PHP код:

CHIP[14] 'ИМ1' POWER: -7* +14* IN: 8(A1), 9(A2), 10(~A3), 11(~A4), 12(B1), 13(B2), 1(~B3), 2(~B4), 3(P1) OUT: 5(S), 6(~S), 4(P2) TEST: 0011:0011:0 => 011 TEST: 0011:1011:0 => 011 TEST: 0011:0111:0 => 011 TEST: 0011:1111:0 => 101 TEST: 0011:0001:0 => 011 TEST: 0011:1001:0 => 011 TEST: 0011:0101:0 => 011 TEST: 0011:1101:0 => 101 TEST: 0011:0010:0 => 101 TEST: 0011:1010:0 => 101 TEST: 0011:0110:0 => 101 TEST: 0011:1110:0 => 101 TEST: 0011:0000:0 => 101 TEST: 0011:1000:0 => 101 TEST: 0011:0100:0 => 101 TEST: 0011:1100:0 => 101 TEST: 1011:0011:0 => 011 TEST: 1011:1011:0 => 011 TEST: 1011:0111:0 => 011 TEST: 1011:1111:0 => 101 TEST: 1011:0001:0 => 011 TEST: 1011:1001:0 => 011 TEST: 1011:0101:0 => 011 TEST: 1011:1101:0 => 101 TEST: 1011:0010:0 => 101 TEST: 1011:1010:0 => 101 TEST: 1011:0110:0 => 101 TEST: 1011:1110:0 => 101 TEST: 1011:0000:0 => 101 TEST: 1011:1000:0 => 101 TEST: 1011:0100:0 => 101 TEST: 1011:1100:0 => 101 TEST: 0111:0011:0 => 011 TEST: 0111:1011:0 => 011 TEST: 0111:0111:0 => 011 TEST: 0111:1111:0 => 101 TEST: 0111:0001:0 => 011 TEST: 0111:1001:0 => 011 TEST: 0111:0101:0 => 011 TEST: 0111:1101:0 => 101 TEST: 0111:0010:0 => 101 TEST: 0111:1010:0 => 101 TEST: 0111:0110:0 => 101 TEST: 0111:1110:0 => 101 TEST: 0111:0000:0 => 101 TEST: 0111:1000:0 => 101 TEST: 0111:0100:0 => 101 TEST: 0111:1100:0 => 101 TEST: 1111:0011:0 => 101 TEST: 1111:1011:0 => 101 TEST: 1111:0111:0 => 101 TEST: 1111:1111:0 => 010 TEST: 1111:0001:0 => 101 TEST: 1111:1001:0 => 101 TEST: 1111:0101:0 => 101 TEST: 1111:1101:0 => 010 TEST: 1111:0010:0 => 010 TEST: 1111:1010:0 => 010 TEST: 1111:0110:0 => 010 TEST: 1111:1110:0 => 010 TEST: 1111:0000:0 => 010 TEST: 1111:1000:0 => 010 TEST: 1111:0100:0 => 010 TEST: 1111:1100:0 => 010 TEST: 0001:0011:0 => 011 TEST: 0001:1011:0 => 011 TEST: 0001:0111:0 => 011 TEST: 0001:1111:0 => 101 TEST: 0001:0001:0 => 011 TEST: 0001:1001:0 => 011 TEST: 0001:0101:0 => 011 TEST: 0001:1101:0 => 101 TEST: 0001:0010:0 => 101 TEST: 0001:1010:0 => 101 TEST: 0001:0110:0 => 101 TEST: 0001:1110:0 => 101 TEST: 0001:0000:0 => 101 TEST: 0001:1000:0 => 101 TEST: 0001:0100:0 => 101 TEST: 0001:1100:0 => 101 TEST: 1001:0011:0 => 011 TEST: 1001:1011:0 => 011 TEST: 1001:0111:0 => 011 TEST: 1001:1111:0 => 101 TEST: 1001:0001:0 => 011 TEST: 1001:1001:0 => 011 TEST: 1001:0101:0 => 011 TEST: 1001:1101:0 => 101 TEST: 1001:0010:0 => 101 TEST: 1001:1010:0 => 101 TEST: 1001:0110:0 => 101 TEST: 1001:1110:0 => 101 TEST: 1001:0000:0 => 101 TEST: 1001:1000:0 => 101 TEST: 1001:0100:0 => 101 TEST: 1001:1100:0 => 101 TEST: 0101:0011:0 => 011 TEST: 0101:1011:0 => 011 TEST: 0101:0111:0 => 011 TEST: 0101:1111:0 => 101 TEST: 0101:0001:0 => 011 TEST: 0101:1001:0 => 011 TEST: 0101:0101:0 => 011 TEST: 0101:1101:0 => 101 TEST: 0101:0010:0 => 101 TEST: 0101:1010:0 => 101 TEST: 0101:0110:0 => 101 TEST: 0101:1110:0 => 101 TEST: 0101:0000:0 => 101 TEST: 0101:1000:0 => 101 TEST: 0101:0100:0 => 101 TEST: 0101:1100:0 => 101 TEST: 1101:0011:0 => 101 TEST: 1101:1011:0 => 101 TEST: 1101:0111:0 => 101 TEST: 1101:1111:0 => 010 TEST: 1101:0001:0 => 101 TEST: 1101:1001:0 => 101 TEST: 1101:0101:0 => 101 TEST: 1101:1101:0 => 010 TEST: 1101:0010:0 => 010 TEST: 1101:1010:0 => 010 TEST: 1101:0110:0 => 010 TEST: 1101:1110:0 => 010 TEST: 1101:0000:0 => 010 TEST: 1101:1000:0 => 010 TEST: 1101:0100:0 => 010 TEST: 1101:1100:0 => 010 TEST: 0010:0011:0 => 101 TEST: 0010:1011:0 => 101 TEST: 0010:0111:0 => 101 TEST: 0010:1111:0 => 010 TEST: 0010:0001:0 => 101 TEST: 0010:1001:0 => 101 TEST: 0010:0101:0 => 101 TEST: 0010:1101:0 => 010 TEST: 0010:0010:0 => 010 TEST: 0010:1010:0 => 010 TEST: 0010:0110:0 => 010 TEST: 0010:1110:0 => 010 TEST: 0010:0000:0 => 010 TEST: 0010:1000:0 => 010 TEST: 0010:0100:0 => 010 TEST: 0010:1100:0 => 010 TEST: 1010:0011:0 => 101 TEST: 1010:1011:0 => 101 TEST: 1010:0111:0 => 101 TEST: 1010:1111:0 => 010 TEST: 1010:0001:0 => 101 TEST: 1010:1001:0 => 101 TEST: 1010:0101:0 => 101 TEST: 1010:1101:0 => 010 TEST: 1010:0010:0 => 010 TEST: 1010:1010:0 => 010 TEST: 1010:0110:0 => 010 TEST: 1010:1110:0 => 010 TEST: 1010:0000:0 => 010 TEST: 1010:1000:0 => 010 TEST: 1010:0100:0 => 010 TEST: 1010:1100:0 => 010 TEST: 0110:0011:0 => 101 TEST: 0110:1011:0 => 101 TEST: 0110:0111:0 => 101 TEST: 0110:1111:0 => 010 TEST: 0110:0001:0 => 101 TEST: 0110:1001:0 => 101 TEST: 0110:0101:0 => 101 TEST: 0110:1101:0 => 010 TEST: 0110:0010:0 => 010 TEST: 0110:1010:0 => 010 TEST: 0110:0110:0 => 010 TEST: 0110:1110:0 => 010 TEST: 0110:0000:0 => 010 TEST: 0110:1000:0 => 010 TEST: 0110:0100:0 => 010 TEST: 0110:1100:0 => 010 TEST: 1110:0011:0 => 101 TEST: 1110:1011:0 => 101 TEST: 1110:0111:0 => 101 TEST: 1110:1111:0 => 010 TEST: 1110:0001:0 => 101 TEST: 1110:1001:0 => 101 TEST: 1110:0101:0 => 101 TEST: 1110:1101:0 => 010 TEST: 1110:0010:0 => 010 TEST: 1110:1010:0 => 010 TEST: 1110:0110:0 => 010 TEST: 1110:1110:0 => 010 TEST: 1110:0000:0 => 010 TEST: 1110:1000:0 => 010 TEST: 1110:0100:0 => 010 TEST: 1110:1100:0 => 010 TEST: 0000:0011:0 => 101 TEST: 0000:1011:0 => 101 TEST: 0000:0111:0 => 101 TEST: 0000:1111:0 => 010 TEST: 0000:0001:0 => 101 TEST: 0000:1001:0 => 101 TEST: 0000:0101:0 => 101 TEST: 0000:1101:0 => 010 TEST: 0000:0010:0 => 010 TEST: 0000:1010:0 => 010 TEST: 0000:0110:0 => 010 TEST: 0000:1110:0 => 010 TEST: 0000:0000:0 => 010 TEST: 0000:1000:0 => 010 TEST: 0000:0100:0 => 010 TEST: 0000:1100:0 => 010 TEST: 1000:0011:0 => 101 TEST: 1000:1011:0 => 101 TEST: 1000:0111:0 => 101 TEST: 1000:1111:0 => 010 TEST: 1000:0001:0 => 101 TEST: 1000:1001:0 => 101 TEST: 1000:0101:0 => 101 TEST: 1000:1101:0 => 010 TEST: 1000:0010:0 => 010 TEST: 1000:1010:0 => 010 TEST: 1000:0110:0 => 010 TEST: 1000:1110:0 => 010 TEST: 1000:0000:0 => 010 TEST: 1000:1000:0 => 010 TEST: 1000:0100:0 => 010 TEST: 1000:1100:0 => 010 TEST: 0100:0011:0 => 101 TEST: 0100:1011:0 => 101 TEST: 0100:0111:0 => 101 TEST: 0100:1111:0 => 010 TEST: 0100:0001:0 => 101 TEST: 0100:1001:0 => 101 TEST: 0100:0101:0 => 101 TEST: 0100:1101:0 => 010 TEST: 0100:0010:0 => 010 TEST: 0100:1010:0 => 010 TEST: 0100:0110:0 => 010 TEST: 0100:1110:0 => 010 TEST: 0100:0000:0 => 010 TEST: 0100:1000:0 => 010 TEST: 0100:0100:0 => 010 TEST: 0100:1100:0 => 010 TEST: 1100:0011:0 => 101 TEST: 1100:1011:0 => 101 TEST: 1100:0111:0 => 101 TEST: 1100:1111:0 => 010 TEST: 1100:0001:0 => 101 TEST: 1100:1001:0 => 101 TEST: 1100:0101:0 => 101 TEST: 1100:1101:0 => 010 TEST: 1100:0010:0 => 010 TEST: 1100:1010:0 => 010 TEST: 1100:0110:0 => 010 TEST: 1100:1110:0 => 010 TEST: 1100:0000:0 => 010 TEST: 1100:1000:0 => 010 TEST: 1100:0100:0 => 010 TEST: 1100:1100:0 => 010 TEST: 0011:0011:1 => 101 TEST: 0011:1011:1 => 101 TEST: 0011:0111:1 => 101 TEST: 0011:1111:1 => 010 TEST: 0011:0001:1 => 101 TEST: 0011:1001:1 => 101 TEST: 0011:0101:1 => 101 TEST: 0011:1101:1 => 010 TEST: 0011:0010:1 => 010 TEST: 0011:1010:1 => 010 TEST: 0011:0110:1 => 010 TEST: 0011:1110:1 => 010 TEST: 0011:0000:1 => 010 TEST: 0011:1000:1 => 010 TEST: 0011:0100:1 => 010 TEST: 0011:1100:1 => 010 TEST: 1011:0011:1 => 101 TEST: 1011:1011:1 => 101 TEST: 1011:0111:1 => 101 TEST: 1011:1111:1 => 010 TEST: 1011:0001:1 => 101 TEST: 1011:1001:1 => 101 TEST: 1011:0101:1 => 101 TEST: 1011:1101:1 => 010 TEST: 1011:0010:1 => 010 TEST: 1011:1010:1 => 010 TEST: 1011:0110:1 => 010 TEST: 1011:1110:1 => 010 TEST: 1011:0000:1 => 010 TEST: 1011:1000:1 => 010 TEST: 1011:0100:1 => 010 TEST: 1011:1100:1 => 010 TEST: 0111:0011:1 => 101 TEST: 0111:1011:1 => 101 TEST: 0111:0111:1 => 101 TEST: 0111:1111:1 => 010 TEST: 0111:0001:1 => 101 TEST: 0111:1001:1 => 101 TEST: 0111:0101:1 => 101 TEST: 0111:1101:1 => 010 TEST: 0111:0010:1 => 010 TEST: 0111:1010:1 => 010 TEST: 0111:0110:1 => 010 TEST: 0111:1110:1 => 010 TEST: 0111:0000:1 => 010 TEST: 0111:1000:1 => 010 TEST: 0111:0100:1 => 010 TEST: 0111:1100:1 => 010 TEST: 1111:0011:1 => 010 TEST: 1111:1011:1 => 010 TEST: 1111:0111:1 => 010 TEST: 1111:1111:1 => 100 TEST: 1111:0001:1 => 010 TEST: 1111:1001:1 => 010 TEST: 1111:0101:1 => 010 TEST: 1111:1101:1 => 100 TEST: 1111:0010:1 => 100 TEST: 1111:1010:1 => 100 TEST: 1111:0110:1 => 100 TEST: 1111:1110:1 => 100 TEST: 1111:0000:1 => 100 TEST: 1111:1000:1 => 100 TEST: 1111:0100:1 => 100 TEST: 1111:1100:1 => 100 TEST: 0001:0011:1 => 101 TEST: 0001:1011:1 => 101 TEST: 0001:0111:1 => 101 TEST: 0001:1111:1 => 010 TEST: 0001:0001:1 => 101 TEST: 0001:1001:1 => 101 TEST: 0001:0101:1 => 101 TEST: 0001:1101:1 => 010 TEST: 0001:0010:1 => 010 TEST: 0001:1010:1 => 010 TEST: 0001:0110:1 => 010 TEST: 0001:1110:1 => 010 TEST: 0001:0000:1 => 010 TEST: 0001:1000:1 => 010 TEST: 0001:0100:1 => 010 TEST: 0001:1100:1 => 010 TEST: 1001:0011:1 => 101 TEST: 1001:1011:1 => 101 TEST: 1001:0111:1 => 101 TEST: 1001:1111:1 => 010 TEST: 1001:0001:1 => 101 TEST: 1001:1001:1 => 101 TEST: 1001:0101:1 => 101 TEST: 1001:1101:1 => 010 TEST: 1001:0010:1 => 010 TEST: 1001:1010:1 => 010 TEST: 1001:0110:1 => 010 TEST: 1001:1110:1 => 010 TEST: 1001:0000:1 => 010 TEST: 1001:1000:1 => 010 TEST: 1001:0100:1 => 010 TEST: 1001:1100:1 => 010 TEST: 0101:0011:1 => 101 TEST: 0101:1011:1 => 101 TEST: 0101:0111:1 => 101 TEST: 0101:1111:1 => 010 TEST: 0101:0001:1 => 101 TEST: 0101:1001:1 => 101 TEST: 0101:0101:1 => 101 TEST: 0101:1101:1 => 010 TEST: 0101:0010:1 => 010 TEST: 0101:1010:1 => 010 TEST: 0101:0110:1 => 010 TEST: 0101:1110:1 => 010 TEST: 0101:0000:1 => 010 TEST: 0101:1000:1 => 010 TEST: 0101:0100:1 => 010 TEST: 0101:1100:1 => 010 TEST: 1101:0011:1 => 010 TEST: 1101:1011:1 => 010 TEST: 1101:0111:1 => 010 TEST: 1101:1111:1 => 100 TEST: 1101:0001:1 => 010 TEST: 1101:1001:1 => 010 TEST: 1101:0101:1 => 010 TEST: 1101:1101:1 => 100 TEST: 1101:0010:1 => 100 TEST: 1101:1010:1 => 100 TEST: 1101:0110:1 => 100 TEST: 1101:1110:1 => 100 TEST: 1101:0000:1 => 100 TEST: 1101:1000:1 => 100 TEST: 1101:0100:1 => 100 TEST: 1101:1100:1 => 100 TEST: 0010:0011:1 => 010 TEST: 0010:1011:1 => 010 TEST: 0010:0111:1 => 010 TEST: 0010:1111:1 => 100 TEST: 0010:0001:1 => 010 TEST: 0010:1001:1 => 010 TEST: 0010:0101:1 => 010 TEST: 0010:1101:1 => 100 TEST: 0010:0010:1 => 100 TEST: 0010:1010:1 => 100 TEST: 0010:0110:1 => 100 TEST: 0010:1110:1 => 100 TEST: 0010:0000:1 => 100 TEST: 0010:1000:1 => 100 TEST: 0010:0100:1 => 100 TEST: 0010:1100:1 => 100 TEST: 1010:0011:1 => 010 TEST: 1010:1011:1 => 010 TEST: 1010:0111:1 => 010 TEST: 1010:1111:1 => 100 TEST: 1010:0001:1 => 010 TEST: 1010:1001:1 => 010 TEST: 1010:0101:1 => 010 TEST: 1010:1101:1 => 100 TEST: 1010:0010:1 => 100 TEST: 1010:1010:1 => 100 TEST: 1010:0110:1 => 100 TEST: 1010:1110:1 => 100 TEST: 1010:0000:1 => 100 TEST: 1010:1000:1 => 100 TEST: 1010:0100:1 => 100 TEST: 1010:1100:1 => 100 TEST: 0110:0011:1 => 010 TEST: 0110:1011:1 => 010 TEST: 0110:0111:1 => 010 TEST: 0110:1111:1 => 100 TEST: 0110:0001:1 => 010 TEST: 0110:1001:1 => 010 TEST: 0110:0101:1 => 010 TEST: 0110:1101:1 => 100 TEST: 0110:0010:1 => 100 TEST: 0110:1010:1 => 100 TEST: 0110:0110:1 => 100 TEST: 0110:1110:1 => 100 TEST: 0110:0000:1 => 100 TEST: 0110:1000:1 => 100 TEST: 0110:0100:1 => 100 TEST: 0110:1100:1 => 100 TEST: 1110:0011:1 => 010 TEST: 1110:1011:1 => 010 TEST: 1110:0111:1 => 010 TEST: 1110:1111:1 => 100 TEST: 1110:0001:1 => 010 TEST: 1110:1001:1 => 010 TEST: 1110:0101:1 => 010 TEST: 1110:1101:1 => 100 TEST: 1110:0010:1 => 100 TEST: 1110:1010:1 => 100 TEST: 1110:0110:1 => 100 TEST: 1110:1110:1 => 100 TEST: 1110:0000:1 => 100 TEST: 1110:1000:1 => 100 TEST: 1110:0100:1 => 100 TEST: 1110:1100:1 => 100 TEST: 0000:0011:1 => 010 TEST: 0000:1011:1 => 010 TEST: 0000:0111:1 => 010 TEST: 0000:1111:1 => 100 TEST: 0000:0001:1 => 010 TEST: 0000:1001:1 => 010 TEST: 0000:0101:1 => 010 TEST: 0000:1101:1 => 100 TEST: 0000:0010:1 => 100 TEST: 0000:1010:1 => 100 TEST: 0000:0110:1 => 100 TEST: 0000:1110:1 => 100 TEST: 0000:0000:1 => 100 TEST: 0000:1000:1 => 100 TEST: 0000:0100:1 => 100 TEST: 0000:1100:1 => 100 TEST: 1000:0011:1 => 010 TEST: 1000:1011:1 => 010 TEST: 1000:0111:1 => 010 TEST: 1000:1111:1 => 100 TEST: 1000:0001:1 => 010 TEST: 1000:1001:1 => 010 TEST: 1000:0101:1 => 010 TEST: 1000:1101:1 => 100 TEST: 1000:0010:1 => 100 TEST: 1000:1010:1 => 100 TEST: 1000:0110:1 => 100 TEST: 1000:1110:1 => 100 TEST: 1000:0000:1 => 100 TEST: 1000:1000:1 => 100 TEST: 1000:0100:1 => 100 TEST: 1000:1100:1 => 100 TEST: 0100:0011:1 => 010 TEST: 0100:1011:1 => 010 TEST: 0100:0111:1 => 010 TEST: 0100:1111:1 => 100 TEST: 0100:0001:1 => 010 TEST: 0100:1001:1 => 010 TEST: 0100:0101:1 => 010 TEST: 0100:1101:1 => 100 TEST: 0100:0010:1 => 100 TEST: 0100:1010:1 => 100 TEST: 0100:0110:1 => 100 TEST: 0100:1110:1 => 100 TEST: 0100:0000:1 => 100 TEST: 0100:1000:1 => 100 TEST: 0100:0100:1 => 100 TEST: 0100:1100:1 => 100 TEST: 1100:0011:1 => 010 TEST: 1100:1011:1 => 010 TEST: 1100:0111:1 => 010 TEST: 1100:1111:1 => 100 TEST: 1100:0001:1 => 010 TEST: 1100:1001:1 => 010 TEST: 1100:0101:1 => 010 TEST: 1100:1101:1 => 100 TEST: 1100:0010:1 => 100 TEST: 1100:1010:1 => 100 TEST: 1100:0110:1 => 100 TEST: 1100:1110:1 => 100 TEST: 1100:0000:1 => 100 TEST: 1100:1000:1 => 100 TEST: 1100:0100:1 => 100 TEST: 1100:1100:1 => 100

[свернуть]

Успешные тесты:

Скрытый текст

Код:

CMD_POWER_MINUS, 7, CMD_POWER_PLUS, 40, CMD_INIT_16, 0b01000111, 0b11111110, CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111001, 0b10101011, 0b10111001,// TEST: 0011:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011001, 0b10101011, 0b11011001,// TEST: 0011:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111001, 0b10011010, 0b11111001,// TEST: 0011:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011001, 0b10011001, 0b10011001,// TEST: 0011:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111001, 0b10011001, 0b10111001,// TEST: 0011:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011001, 0b10011001, 0b11011001,// TEST: 0011:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111001, 0b10011001, 0b11111001,// TEST: 0011:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011001, 0b10011000, 0b10011001,// TEST: 0011:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111001, 0b10011000, 0b10111001,// TEST: 0011:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011001, 0b10011000, 0b11011001,// TEST: 0011:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111001, 0b10011000, 0b11111001,// TEST: 0011:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10011011, 0b10101011, 0b10011011,// TEST: 1011:0011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111011, 0b10101011, 0b10111011,// TEST: 1011:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011011, 0b10101011, 0b11011011,// TEST: 1011:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111011, 0b10011010, 0b11111011,// TEST: 1011:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011011, 0b10011001, 0b10011011,// TEST: 1011:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111011, 0b10011001, 0b10111011,// TEST: 1011:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011011, 0b10011001, 0b11011011,// TEST: 1011:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111011, 0b10011001, 0b11111011,// TEST: 1011:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011011, 0b10011000, 0b10011011,// TEST: 1011:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111011, 0b10011000, 0b10111011,// TEST: 1011:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011011, 0b10011000, 0b11011011,// TEST: 1011:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111011, 0b10011000, 0b11111011,// TEST: 1011:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10011101, 0b10101011, 0b10011101,// TEST: 0111:0011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111101, 0b10101011, 0b10111101,// TEST: 0111:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011101, 0b10101011, 0b11011101,// TEST: 0111:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111101, 0b10011010, 0b11111101,// TEST: 0111:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011101, 0b10011001, 0b10011101,// TEST: 0111:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111101, 0b10011001, 0b10111101,// TEST: 0111:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011101, 0b10011001, 0b11011101,// TEST: 0111:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111101, 0b10011001, 0b11111101,// TEST: 0111:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011101, 0b10011000, 0b10011101,// TEST: 0111:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111101, 0b10011000, 0b10111101,// TEST: 0111:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011101, 0b10011000, 0b11011101,// TEST: 0111:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111101, 0b10011000, 0b11111101,// TEST: 0111:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b10011111, 0b10011010, 0b10011111,// TEST: 1111:0001:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b10111111, 0b10011010, 0b10111111,// TEST: 1111:1001:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11011111, 0b10011010, 0b11011111,// TEST: 1111:0101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110001, 0b10011011, 0b11110001,// TEST: 0001:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110011, 0b10011011, 0b11110011,// TEST: 1001:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110101, 0b10011011, 0b11110101,// TEST: 0101:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10010111, 0b10011011, 0b10010111,// TEST: 1101:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10110111, 0b10011011, 0b10110111,// TEST: 1101:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11010111, 0b10011011, 0b11010111,// TEST: 1101:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11110111, 0b10100010, 0b11110111,// TEST: 1101:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10010111, 0b10100001, 0b10010111,// TEST: 1101:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10110111, 0b10100001, 0b10110111,// TEST: 1101:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11010111, 0b10100001, 0b11010111,// TEST: 1101:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11110111, 0b10100001, 0b11110111,// TEST: 1101:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10010111, 0b10100000, 0b10010111,// TEST: 1101:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10110111, 0b10100000, 0b10110111,// TEST: 1101:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11010111, 0b10100000, 0b11010111,// TEST: 1101:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11110111, 0b10100000, 0b11110111,// TEST: 1101:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001001, 0b10011011, 0b10001001,// TEST: 0010:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101001, 0b10011011, 0b10101001,// TEST: 0010:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001001, 0b10011011, 0b11001001,// TEST: 0010:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101001, 0b10100010, 0b11101001,// TEST: 0010:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001001, 0b10100001, 0b10001001,// TEST: 0010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101001, 0b10100001, 0b10101001,// TEST: 0010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001001, 0b10100001, 0b11001001,// TEST: 0010:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101001, 0b10100001, 0b11101001,// TEST: 0010:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001001, 0b10100000, 0b10001001,// TEST: 0010:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101001, 0b10100000, 0b10101001,// TEST: 0010:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001001, 0b10100000, 0b11001001,// TEST: 0010:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101001, 0b10100000, 0b11101001,// TEST: 0010:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001011, 0b10011011, 0b10001011,// TEST: 1010:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101011, 0b10011011, 0b10101011,// TEST: 1010:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001011, 0b10011011, 0b11001011,// TEST: 1010:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101011, 0b10100010, 0b11101011,// TEST: 1010:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001011, 0b10100001, 0b10001011,// TEST: 1010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101011, 0b10100001, 0b10101011,// TEST: 1010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001011, 0b10100001, 0b11001011,// TEST: 1010:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101011, 0b10100001, 0b11101011,// TEST: 1010:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001011, 0b10100000, 0b10001011,// TEST: 1010:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101011, 0b10100000, 0b10101011,// TEST: 1010:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001011, 0b10100000, 0b11001011,// TEST: 1010:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101011, 0b10100000, 0b11101011,// TEST: 1010:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001101, 0b10011011, 0b10001101,// TEST: 0110:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101101, 0b10011011, 0b10101101,// TEST: 0110:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001101, 0b10011011, 0b11001101,// TEST: 0110:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101101, 0b10100010, 0b11101101,// TEST: 0110:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001101, 0b10100001, 0b10001101,// TEST: 0110:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101101, 0b10100001, 0b10101101,// TEST: 0110:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001101, 0b10100001, 0b11001101,// TEST: 0110:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101101, 0b10100001, 0b11101101,// TEST: 0110:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001101, 0b10100000, 0b10001101,// TEST: 0110:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101101, 0b10100000, 0b10101101,// TEST: 0110:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001101, 0b10100000, 0b11001101,// TEST: 0110:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101101, 0b10100000, 0b11101101,// TEST: 0110:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001111, 0b10011011, 0b10001111,// TEST: 1110:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101111, 0b10011011, 0b10101111,// TEST: 1110:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001111, 0b10011011, 0b11001111,// TEST: 1110:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101111, 0b10100010, 0b11101111,// TEST: 1110:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001111, 0b10100001, 0b10001111,// TEST: 1110:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101111, 0b10100001, 0b10101111,// TEST: 1110:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001111, 0b10100001, 0b11001111,// TEST: 1110:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101111, 0b10100001, 0b11101111,// TEST: 1110:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001111, 0b10100000, 0b10001111,// TEST: 1110:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101111, 0b10100000, 0b10101111,// TEST: 1110:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001111, 0b10100000, 0b11001111,// TEST: 1110:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101111, 0b10100000, 0b11101111,// TEST: 1110:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000001, 0b10011011, 0b10000001,// TEST: 0000:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100001, 0b10011011, 0b10100001,// TEST: 0000:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000001, 0b10011011, 0b11000001,// TEST: 0000:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100001, 0b10100010, 0b11100001,// TEST: 0000:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000001, 0b10100001, 0b10000001,// TEST: 0000:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100001, 0b10100001, 0b10100001,// TEST: 0000:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000001, 0b10100001, 0b11000001,// TEST: 0000:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100001, 0b10100001, 0b11100001,// TEST: 0000:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000001, 0b10100000, 0b10000001,// TEST: 0000:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100001, 0b10100000, 0b10100001,// TEST: 0000:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000001, 0b10100000, 0b11000001,// TEST: 0000:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100001, 0b10100000, 0b11100001,// TEST: 0000:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000011, 0b10011011, 0b10000011,// TEST: 1000:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100011, 0b10011011, 0b10100011,// TEST: 1000:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000011, 0b10011011, 0b11000011,// TEST: 1000:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100011, 0b10100010, 0b11100011,// TEST: 1000:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000011, 0b10100001, 0b10000011,// TEST: 1000:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100011, 0b10100001, 0b10100011,// TEST: 1000:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000011, 0b10100001, 0b11000011,// TEST: 1000:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100011, 0b10100001, 0b11100011,// TEST: 1000:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000011, 0b10100000, 0b10000011,// TEST: 1000:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100011, 0b10100000, 0b10100011,// TEST: 1000:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000011, 0b10100000, 0b11000011,// TEST: 1000:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100011, 0b10100000, 0b11100011,// TEST: 1000:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000101, 0b10011011, 0b10000101,// TEST: 0100:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100101, 0b10011011, 0b10100101,// TEST: 0100:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000101, 0b10011011, 0b11000101,// TEST: 0100:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100101, 0b10100010, 0b11100101,// TEST: 0100:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000101, 0b10100001, 0b10000101,// TEST: 0100:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100101, 0b10100001, 0b10100101,// TEST: 0100:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000101, 0b10100001, 0b11000101,// TEST: 0100:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100101, 0b10100001, 0b11100101,// TEST: 0100:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000101, 0b10100000, 0b10000101,// TEST: 0100:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100101, 0b10100000, 0b10100101,// TEST: 0100:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000101, 0b10100000, 0b11000101,// TEST: 0100:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100101, 0b10100000, 0b11100101,// TEST: 0100:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000111, 0b10011011, 0b10000111,// TEST: 1100:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100111, 0b10011011, 0b10100111,// TEST: 1100:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000111, 0b10011011, 0b11000111,// TEST: 1100:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100111, 0b10100010, 0b11100111,// TEST: 1100:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000111, 0b10100001, 0b10000111,// TEST: 1100:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100111, 0b10100001, 0b10100111,// TEST: 1100:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000111, 0b10100001, 0b11000111,// TEST: 1100:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100111, 0b10100001, 0b11100111,// TEST: 1100:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000111, 0b10100000, 0b10000111,// TEST: 1100:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100111, 0b10100000, 0b10100111,// TEST: 1100:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000111, 0b10100000, 0b11000111,// TEST: 1100:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100111, 0b10100000, 0b11100111,// TEST: 1100:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011001, 0b10011111, 0b10011001,// TEST: 0011:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111001, 0b10011111, 0b10111001,// TEST: 0011:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011001, 0b10011111, 0b11011001,// TEST: 0011:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111001, 0b10100110, 0b11111001,// TEST: 0011:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011001, 0b10100101, 0b10011001,// TEST: 0011:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111001, 0b10100101, 0b10111001,// TEST: 0011:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011001, 0b10100101, 0b11011001,// TEST: 0011:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111001, 0b10100101, 0b11111001,// TEST: 0011:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011001, 0b10100100, 0b10011001,// TEST: 0011:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111001, 0b10100100, 0b10111001,// TEST: 0011:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011001, 0b10100100, 0b11011001,// TEST: 0011:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111001, 0b10100100, 0b11111001,// TEST: 0011:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011011, 0b10011111, 0b10011011,// TEST: 1011:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111011, 0b10011111, 0b10111011,// TEST: 1011:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011011, 0b10011111, 0b11011011,// TEST: 1011:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111011, 0b10100110, 0b11111011,// TEST: 1011:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011011, 0b10100101, 0b10011011,// TEST: 1011:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111011, 0b10100101, 0b10111011,// TEST: 1011:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011011, 0b10100101, 0b11011011,// TEST: 1011:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111011, 0b10100101, 0b11111011,// TEST: 1011:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011011, 0b10100100, 0b10011011,// TEST: 1011:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111011, 0b10100100, 0b10111011,// TEST: 1011:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011011, 0b10100100, 0b11011011,// TEST: 1011:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111011, 0b10100100, 0b11111011,// TEST: 1011:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011101, 0b10011111, 0b10011101,// TEST: 0111:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111101, 0b10011111, 0b10111101,// TEST: 0111:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011101, 0b10011111, 0b11011101,// TEST: 0111:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111101, 0b10100110, 0b11111101,// TEST: 0111:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011101, 0b10100101, 0b10011101,// TEST: 0111:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111101, 0b10100101, 0b10111101,// TEST: 0111:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011101, 0b10100101, 0b11011101,// TEST: 0111:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111101, 0b10100101, 0b11111101,// TEST: 0111:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011101, 0b10100100, 0b10011101,// TEST: 0111:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111101, 0b10100100, 0b10111101,// TEST: 0111:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011101, 0b10100100, 0b11011101,// TEST: 0111:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111101, 0b10100100, 0b11111101,// TEST: 0111:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b10011111, 0b10100110, 0b10011111,// TEST: 1111:0001:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b10111111, 0b10100110, 0b10111111,// TEST: 1111:1001:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11011111, 0b10100110, 0b11011111,// TEST: 1111:0101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110001, 0b10100111, 0b11110001,// TEST: 0001:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110011, 0b10100111, 0b11110011,// TEST: 1001:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110101, 0b10100111, 0b11110101,// TEST: 0101:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10010111, 0b10100111, 0b10010111,// TEST: 1101:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10110111, 0b10100111, 0b10110111,// TEST: 1101:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11010111, 0b10100111, 0b11010111,// TEST: 1101:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11110111, 0b10010110, 0b11110111,// TEST: 1101:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10010111, 0b10010101, 0b10010111,// TEST: 1101:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10110111, 0b10010101, 0b10110111,// TEST: 1101:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11010111, 0b10010101, 0b11010111,// TEST: 1101:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11110111, 0b10010101, 0b11110111,// TEST: 1101:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10010111, 0b10010100, 0b10010111,// TEST: 1101:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10110111, 0b10010100, 0b10110111,// TEST: 1101:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11010111, 0b10010100, 0b11010111,// TEST: 1101:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11110111, 0b10010100, 0b11110111,// TEST: 1101:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001001, 0b10100111, 0b10001001,// TEST: 0010:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101001, 0b10100111, 0b10101001,// TEST: 0010:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001001, 0b10100111, 0b11001001,// TEST: 0010:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101001, 0b10010110, 0b11101001,// TEST: 0010:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001001, 0b10010101, 0b10001001,// TEST: 0010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101001, 0b10010101, 0b10101001,// TEST: 0010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001001, 0b10010101, 0b11001001,// TEST: 0010:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101001, 0b10010101, 0b11101001,// TEST: 0010:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001001, 0b10010100, 0b10001001,// TEST: 0010:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101001, 0b10010100, 0b10101001,// TEST: 0010:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001001, 0b10010100, 0b11001001,// TEST: 0010:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101001, 0b10010100, 0b11101001,// TEST: 0010:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001011, 0b10100111, 0b10001011,// TEST: 1010:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101011, 0b10100111, 0b10101011,// TEST: 1010:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001011, 0b10100111, 0b11001011,// TEST: 1010:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101011, 0b10010110, 0b11101011,// TEST: 1010:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001011, 0b10010101, 0b10001011,// TEST: 1010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101011, 0b10010101, 0b10101011,// TEST: 1010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001011, 0b10010101, 0b11001011,// TEST: 1010:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101011, 0b10010101, 0b11101011,// TEST: 1010:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001011, 0b10010100, 0b10001011,// TEST: 1010:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101011, 0b10010100, 0b10101011,// TEST: 1010:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001011, 0b10010100, 0b11001011,// TEST: 1010:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101011, 0b10010100, 0b11101011,// TEST: 1010:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001101, 0b10100111, 0b10001101,// TEST: 0110:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101101, 0b10100111, 0b10101101,// TEST: 0110:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001101, 0b10100111, 0b11001101,// TEST: 0110:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101101, 0b10010110, 0b11101101,// TEST: 0110:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001101, 0b10010101, 0b10001101,// TEST: 0110:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101101, 0b10010101, 0b10101101,// TEST: 0110:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001101, 0b10010101, 0b11001101,// TEST: 0110:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101101, 0b10010101, 0b11101101,// TEST: 0110:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001101, 0b10010100, 0b10001101,// TEST: 0110:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101101, 0b10010100, 0b10101101,// TEST: 0110:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001101, 0b10010100, 0b11001101,// TEST: 0110:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101101, 0b10010100, 0b11101101,// TEST: 0110:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001111, 0b10100111, 0b10001111,// TEST: 1110:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101111, 0b10100111, 0b10101111,// TEST: 1110:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001111, 0b10100111, 0b11001111,// TEST: 1110:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101111, 0b10010110, 0b11101111,// TEST: 1110:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001111, 0b10010101, 0b10001111,// TEST: 1110:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101111, 0b10010101, 0b10101111,// TEST: 1110:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001111, 0b10010101, 0b11001111,// TEST: 1110:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101111, 0b10010101, 0b11101111,// TEST: 1110:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001111, 0b10010100, 0b10001111,// TEST: 1110:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101111, 0b10010100, 0b10101111,// TEST: 1110:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001111, 0b10010100, 0b11001111,// TEST: 1110:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101111, 0b10010100, 0b11101111,// TEST: 1110:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000001, 0b10100111, 0b10000001,// TEST: 0000:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100001, 0b10100111, 0b10100001,// TEST: 0000:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000001, 0b10100111, 0b11000001,// TEST: 0000:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100001, 0b10010110, 0b11100001,// TEST: 0000:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000001, 0b10010101, 0b10000001,// TEST: 0000:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100001, 0b10010101, 0b10100001,// TEST: 0000:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000001, 0b10010101, 0b11000001,// TEST: 0000:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100001, 0b10010101, 0b11100001,// TEST: 0000:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000001, 0b10010100, 0b10000001,// TEST: 0000:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100001, 0b10010100, 0b10100001,// TEST: 0000:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000001, 0b10010100, 0b11000001,// TEST: 0000:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100001, 0b10010100, 0b11100001,// TEST: 0000:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000011, 0b10100111, 0b10000011,// TEST: 1000:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100011, 0b10100111, 0b10100011,// TEST: 1000:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000011, 0b10100111, 0b11000011,// TEST: 1000:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100011, 0b10010110, 0b11100011,// TEST: 1000:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000011, 0b10010101, 0b10000011,// TEST: 1000:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100011, 0b10010101, 0b10100011,// TEST: 1000:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000011, 0b10010101, 0b11000011,// TEST: 1000:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100011, 0b10010101, 0b11100011,// TEST: 1000:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000011, 0b10010100, 0b10000011,// TEST: 1000:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100011, 0b10010100, 0b10100011,// TEST: 1000:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000011, 0b10010100, 0b11000011,// TEST: 1000:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100011, 0b10010100, 0b11100011,// TEST: 1000:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000101, 0b10100111, 0b10000101,// TEST: 0100:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100101, 0b10100111, 0b10100101,// TEST: 0100:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000101, 0b10100111, 0b11000101,// TEST: 0100:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100101, 0b10010110, 0b11100101,// TEST: 0100:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000101, 0b10010101, 0b10000101,// TEST: 0100:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100101, 0b10010101, 0b10100101,// TEST: 0100:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000101, 0b10010101, 0b11000101,// TEST: 0100:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100101, 0b10010101, 0b11100101,// TEST: 0100:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000101, 0b10010100, 0b10000101,// TEST: 0100:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100101, 0b10010100, 0b10100101,// TEST: 0100:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000101, 0b10010100, 0b11000101,// TEST: 0100:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100101, 0b10010100, 0b11100101,// TEST: 0100:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000111, 0b10100111, 0b10000111,// TEST: 1100:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100111, 0b10100111, 0b10100111,// TEST: 1100:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000111, 0b10100111, 0b11000111,// TEST: 1100:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100111, 0b10010110, 0b11100111,// TEST: 1100:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000111, 0b10010101, 0b10000111,// TEST: 1100:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100111, 0b10010101, 0b10100111,// TEST: 1100:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000111, 0b10010101, 0b11000111,// TEST: 1100:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100111, 0b10010101, 0b11100111,// TEST: 1100:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000111, 0b10010100, 0b10000111,// TEST: 1100:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100111, 0b10010100, 0b10100111,// TEST: 1100:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000111, 0b10010100, 0b11000111,// TEST: 1100:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100111, 0b10010100, 0b11100111,// TEST: 1100:1100:1 => 100

[свернуть]
16.06.2018, 09:44
Trol73

Цитата:

Сообщение от Andrey_Ak

Успешные тесты:

Скрытый текст

Код:

CMD_POWER_MINUS, 7, CMD_POWER_PLUS, 40, CMD_INIT_16, 0b01000111, 0b11111110, CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111001, 0b10101011, 0b10111001,// TEST: 0011:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011001, 0b10101011, 0b11011001,// TEST: 0011:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111001, 0b10011010, 0b11111001,// TEST: 0011:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011001, 0b10011001, 0b10011001,// TEST: 0011:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111001, 0b10011001, 0b10111001,// TEST: 0011:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011001, 0b10011001, 0b11011001,// TEST: 0011:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111001, 0b10011001, 0b11111001,// TEST: 0011:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011001, 0b10011000, 0b10011001,// TEST: 0011:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111001, 0b10011000, 0b10111001,// TEST: 0011:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011001, 0b10011000, 0b11011001,// TEST: 0011:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111001, 0b10011000, 0b11111001,// TEST: 0011:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10011011, 0b10101011, 0b10011011,// TEST: 1011:0011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111011, 0b10101011, 0b10111011,// TEST: 1011:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011011, 0b10101011, 0b11011011,// TEST: 1011:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111011, 0b10011010, 0b11111011,// TEST: 1011:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011011, 0b10011001, 0b10011011,// TEST: 1011:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111011, 0b10011001, 0b10111011,// TEST: 1011:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011011, 0b10011001, 0b11011011,// TEST: 1011:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111011, 0b10011001, 0b11111011,// TEST: 1011:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011011, 0b10011000, 0b10011011,// TEST: 1011:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111011, 0b10011000, 0b10111011,// TEST: 1011:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011011, 0b10011000, 0b11011011,// TEST: 1011:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111011, 0b10011000, 0b11111011,// TEST: 1011:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10011101, 0b10101011, 0b10011101,// TEST: 0111:0011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10111101, 0b10101011, 0b10111101,// TEST: 0111:1011:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11011101, 0b10101011, 0b11011101,// TEST: 0111:0111:0 => 011 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11111101, 0b10011010, 0b11111101,// TEST: 0111:1101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10011101, 0b10011001, 0b10011101,// TEST: 0111:0010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10111101, 0b10011001, 0b10111101,// TEST: 0111:1010:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11011101, 0b10011001, 0b11011101,// TEST: 0111:0110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11111101, 0b10011001, 0b11111101,// TEST: 0111:1110:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10011101, 0b10011000, 0b10011101,// TEST: 0111:0000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10111101, 0b10011000, 0b10111101,// TEST: 0111:1000:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11011101, 0b10011000, 0b11011101,// TEST: 0111:0100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11111101, 0b10011000, 0b11111101,// TEST: 0111:1100:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b10011111, 0b10011010, 0b10011111,// TEST: 1111:0001:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b10111111, 0b10011010, 0b10111111,// TEST: 1111:1001:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11011111, 0b10011010, 0b11011111,// TEST: 1111:0101:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110001, 0b10011011, 0b11110001,// TEST: 0001:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110011, 0b10011011, 0b11110011,// TEST: 1001:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11110101, 0b10011011, 0b11110101,// TEST: 0101:1111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10010111, 0b10011011, 0b10010111,// TEST: 1101:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10110111, 0b10011011, 0b10110111,// TEST: 1101:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11010111, 0b10011011, 0b11010111,// TEST: 1101:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11110111, 0b10100010, 0b11110111,// TEST: 1101:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10010111, 0b10100001, 0b10010111,// TEST: 1101:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10110111, 0b10100001, 0b10110111,// TEST: 1101:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11010111, 0b10100001, 0b11010111,// TEST: 1101:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11110111, 0b10100001, 0b11110111,// TEST: 1101:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10010111, 0b10100000, 0b10010111,// TEST: 1101:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10110111, 0b10100000, 0b10110111,// TEST: 1101:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11010111, 0b10100000, 0b11010111,// TEST: 1101:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11110111, 0b10100000, 0b11110111,// TEST: 1101:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001001, 0b10011011, 0b10001001,// TEST: 0010:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101001, 0b10011011, 0b10101001,// TEST: 0010:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001001, 0b10011011, 0b11001001,// TEST: 0010:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101001, 0b10100010, 0b11101001,// TEST: 0010:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001001, 0b10100001, 0b10001001,// TEST: 0010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101001, 0b10100001, 0b10101001,// TEST: 0010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001001, 0b10100001, 0b11001001,// TEST: 0010:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101001, 0b10100001, 0b11101001,// TEST: 0010:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001001, 0b10100000, 0b10001001,// TEST: 0010:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101001, 0b10100000, 0b10101001,// TEST: 0010:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001001, 0b10100000, 0b11001001,// TEST: 0010:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101001, 0b10100000, 0b11101001,// TEST: 0010:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001011, 0b10011011, 0b10001011,// TEST: 1010:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101011, 0b10011011, 0b10101011,// TEST: 1010:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001011, 0b10011011, 0b11001011,// TEST: 1010:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101011, 0b10100010, 0b11101011,// TEST: 1010:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001011, 0b10100001, 0b10001011,// TEST: 1010:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101011, 0b10100001, 0b10101011,// TEST: 1010:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001011, 0b10100001, 0b11001011,// TEST: 1010:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101011, 0b10100001, 0b11101011,// TEST: 1010:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001011, 0b10100000, 0b10001011,// TEST: 1010:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101011, 0b10100000, 0b10101011,// TEST: 1010:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001011, 0b10100000, 0b11001011,// TEST: 1010:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101011, 0b10100000, 0b11101011,// TEST: 1010:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001101, 0b10011011, 0b10001101,// TEST: 0110:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101101, 0b10011011, 0b10101101,// TEST: 0110:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001101, 0b10011011, 0b11001101,// TEST: 0110:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101101, 0b10100010, 0b11101101,// TEST: 0110:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001101, 0b10100001, 0b10001101,// TEST: 0110:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101101, 0b10100001, 0b10101101,// TEST: 0110:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001101, 0b10100001, 0b11001101,// TEST: 0110:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101101, 0b10100001, 0b11101101,// TEST: 0110:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001101, 0b10100000, 0b10001101,// TEST: 0110:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101101, 0b10100000, 0b10101101,// TEST: 0110:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001101, 0b10100000, 0b11001101,// TEST: 0110:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101101, 0b10100000, 0b11101101,// TEST: 0110:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10001111, 0b10011011, 0b10001111,// TEST: 1110:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10101111, 0b10011011, 0b10101111,// TEST: 1110:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11001111, 0b10011011, 0b11001111,// TEST: 1110:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11101111, 0b10100010, 0b11101111,// TEST: 1110:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10001111, 0b10100001, 0b10001111,// TEST: 1110:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10101111, 0b10100001, 0b10101111,// TEST: 1110:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11001111, 0b10100001, 0b11001111,// TEST: 1110:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11101111, 0b10100001, 0b11101111,// TEST: 1110:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10001111, 0b10100000, 0b10001111,// TEST: 1110:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10101111, 0b10100000, 0b10101111,// TEST: 1110:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11001111, 0b10100000, 0b11001111,// TEST: 1110:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11101111, 0b10100000, 0b11101111,// TEST: 1110:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000001, 0b10011011, 0b10000001,// TEST: 0000:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100001, 0b10011011, 0b10100001,// TEST: 0000:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000001, 0b10011011, 0b11000001,// TEST: 0000:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100001, 0b10100010, 0b11100001,// TEST: 0000:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000001, 0b10100001, 0b10000001,// TEST: 0000:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100001, 0b10100001, 0b10100001,// TEST: 0000:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000001, 0b10100001, 0b11000001,// TEST: 0000:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100001, 0b10100001, 0b11100001,// TEST: 0000:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000001, 0b10100000, 0b10000001,// TEST: 0000:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100001, 0b10100000, 0b10100001,// TEST: 0000:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000001, 0b10100000, 0b11000001,// TEST: 0000:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100001, 0b10100000, 0b11100001,// TEST: 0000:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000011, 0b10011011, 0b10000011,// TEST: 1000:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100011, 0b10011011, 0b10100011,// TEST: 1000:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000011, 0b10011011, 0b11000011,// TEST: 1000:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100011, 0b10100010, 0b11100011,// TEST: 1000:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000011, 0b10100001, 0b10000011,// TEST: 1000:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100011, 0b10100001, 0b10100011,// TEST: 1000:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000011, 0b10100001, 0b11000011,// TEST: 1000:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100011, 0b10100001, 0b11100011,// TEST: 1000:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000011, 0b10100000, 0b10000011,// TEST: 1000:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100011, 0b10100000, 0b10100011,// TEST: 1000:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000011, 0b10100000, 0b11000011,// TEST: 1000:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100011, 0b10100000, 0b11100011,// TEST: 1000:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000101, 0b10011011, 0b10000101,// TEST: 0100:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100101, 0b10011011, 0b10100101,// TEST: 0100:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000101, 0b10011011, 0b11000101,// TEST: 0100:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100101, 0b10100010, 0b11100101,// TEST: 0100:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000101, 0b10100001, 0b10000101,// TEST: 0100:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100101, 0b10100001, 0b10100101,// TEST: 0100:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000101, 0b10100001, 0b11000101,// TEST: 0100:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100101, 0b10100001, 0b11100101,// TEST: 0100:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000101, 0b10100000, 0b10000101,// TEST: 0100:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100101, 0b10100000, 0b10100101,// TEST: 0100:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000101, 0b10100000, 0b11000101,// TEST: 0100:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100101, 0b10100000, 0b11100101,// TEST: 0100:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10000111, 0b10011011, 0b10000111,// TEST: 1100:0011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b10100111, 0b10011011, 0b10100111,// TEST: 1100:1011:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000011, 0b11000111, 0b10011011, 0b11000111,// TEST: 1100:0111:0 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000010, 0b11100111, 0b10100010, 0b11100111,// TEST: 1100:1101:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10000111, 0b10100001, 0b10000111,// TEST: 1100:0010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b10100111, 0b10100001, 0b10100111,// TEST: 1100:1010:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11000111, 0b10100001, 0b11000111,// TEST: 1100:0110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000001, 0b11100111, 0b10100001, 0b11100111,// TEST: 1100:1110:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10000111, 0b10100000, 0b10000111,// TEST: 1100:0000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b10100111, 0b10100000, 0b10100111,// TEST: 1100:1000:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11000111, 0b10100000, 0b11000111,// TEST: 1100:0100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000000, 0b11100111, 0b10100000, 0b11100111,// TEST: 1100:1100:0 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011001, 0b10011111, 0b10011001,// TEST: 0011:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111001, 0b10011111, 0b10111001,// TEST: 0011:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011001, 0b10011111, 0b11011001,// TEST: 0011:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111001, 0b10100110, 0b11111001,// TEST: 0011:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011001, 0b10100101, 0b10011001,// TEST: 0011:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111001, 0b10100101, 0b10111001,// TEST: 0011:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011001, 0b10100101, 0b11011001,// TEST: 0011:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111001, 0b10100101, 0b11111001,// TEST: 0011:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011001, 0b10100100, 0b10011001,// TEST: 0011:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111001, 0b10100100, 0b10111001,// TEST: 0011:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011001, 0b10100100, 0b11011001,// TEST: 0011:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111001, 0b10100100, 0b11111001,// TEST: 0011:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011011, 0b10011111, 0b10011011,// TEST: 1011:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111011, 0b10011111, 0b10111011,// TEST: 1011:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011011, 0b10011111, 0b11011011,// TEST: 1011:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111011, 0b10100110, 0b11111011,// TEST: 1011:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011011, 0b10100101, 0b10011011,// TEST: 1011:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111011, 0b10100101, 0b10111011,// TEST: 1011:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011011, 0b10100101, 0b11011011,// TEST: 1011:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111011, 0b10100101, 0b11111011,// TEST: 1011:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011011, 0b10100100, 0b10011011,// TEST: 1011:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111011, 0b10100100, 0b10111011,// TEST: 1011:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011011, 0b10100100, 0b11011011,// TEST: 1011:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111011, 0b10100100, 0b11111011,// TEST: 1011:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10011101, 0b10011111, 0b10011101,// TEST: 0111:0011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10111101, 0b10011111, 0b10111101,// TEST: 0111:1011:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11011101, 0b10011111, 0b11011101,// TEST: 0111:0111:1 => 101 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11111101, 0b10100110, 0b11111101,// TEST: 0111:1101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10011101, 0b10100101, 0b10011101,// TEST: 0111:0010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10111101, 0b10100101, 0b10111101,// TEST: 0111:1010:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11011101, 0b10100101, 0b11011101,// TEST: 0111:0110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11111101, 0b10100101, 0b11111101,// TEST: 0111:1110:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10011101, 0b10100100, 0b10011101,// TEST: 0111:0000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10111101, 0b10100100, 0b10111101,// TEST: 0111:1000:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11011101, 0b10100100, 0b11011101,// TEST: 0111:0100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11111101, 0b10100100, 0b11111101,// TEST: 0111:1100:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b10011111, 0b10100110, 0b10011111,// TEST: 1111:0001:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b10111111, 0b10100110, 0b10111111,// TEST: 1111:1001:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11011111, 0b10100110, 0b11011111,// TEST: 1111:0101:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110001, 0b10100111, 0b11110001,// TEST: 0001:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110011, 0b10100111, 0b11110011,// TEST: 1001:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11110101, 0b10100111, 0b11110101,// TEST: 0101:1111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10010111, 0b10100111, 0b10010111,// TEST: 1101:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10110111, 0b10100111, 0b10110111,// TEST: 1101:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11010111, 0b10100111, 0b11010111,// TEST: 1101:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11110111, 0b10010110, 0b11110111,// TEST: 1101:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10010111, 0b10010101, 0b10010111,// TEST: 1101:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10110111, 0b10010101, 0b10110111,// TEST: 1101:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11010111, 0b10010101, 0b11010111,// TEST: 1101:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11110111, 0b10010101, 0b11110111,// TEST: 1101:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10010111, 0b10010100, 0b10010111,// TEST: 1101:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10110111, 0b10010100, 0b10110111,// TEST: 1101:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11010111, 0b10010100, 0b11010111,// TEST: 1101:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11110111, 0b10010100, 0b11110111,// TEST: 1101:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001001, 0b10100111, 0b10001001,// TEST: 0010:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101001, 0b10100111, 0b10101001,// TEST: 0010:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001001, 0b10100111, 0b11001001,// TEST: 0010:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101001, 0b10010110, 0b11101001,// TEST: 0010:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001001, 0b10010101, 0b10001001,// TEST: 0010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101001, 0b10010101, 0b10101001,// TEST: 0010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001001, 0b10010101, 0b11001001,// TEST: 0010:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101001, 0b10010101, 0b11101001,// TEST: 0010:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001001, 0b10010100, 0b10001001,// TEST: 0010:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101001, 0b10010100, 0b10101001,// TEST: 0010:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001001, 0b10010100, 0b11001001,// TEST: 0010:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101001, 0b10010100, 0b11101001,// TEST: 0010:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001011, 0b10100111, 0b10001011,// TEST: 1010:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101011, 0b10100111, 0b10101011,// TEST: 1010:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001011, 0b10100111, 0b11001011,// TEST: 1010:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101011, 0b10010110, 0b11101011,// TEST: 1010:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001011, 0b10010101, 0b10001011,// TEST: 1010:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101011, 0b10010101, 0b10101011,// TEST: 1010:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001011, 0b10010101, 0b11001011,// TEST: 1010:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101011, 0b10010101, 0b11101011,// TEST: 1010:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001011, 0b10010100, 0b10001011,// TEST: 1010:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101011, 0b10010100, 0b10101011,// TEST: 1010:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001011, 0b10010100, 0b11001011,// TEST: 1010:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101011, 0b10010100, 0b11101011,// TEST: 1010:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001101, 0b10100111, 0b10001101,// TEST: 0110:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101101, 0b10100111, 0b10101101,// TEST: 0110:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001101, 0b10100111, 0b11001101,// TEST: 0110:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101101, 0b10010110, 0b11101101,// TEST: 0110:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001101, 0b10010101, 0b10001101,// TEST: 0110:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101101, 0b10010101, 0b10101101,// TEST: 0110:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001101, 0b10010101, 0b11001101,// TEST: 0110:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101101, 0b10010101, 0b11101101,// TEST: 0110:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001101, 0b10010100, 0b10001101,// TEST: 0110:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101101, 0b10010100, 0b10101101,// TEST: 0110:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001101, 0b10010100, 0b11001101,// TEST: 0110:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101101, 0b10010100, 0b11101101,// TEST: 0110:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10001111, 0b10100111, 0b10001111,// TEST: 1110:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10101111, 0b10100111, 0b10101111,// TEST: 1110:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11001111, 0b10100111, 0b11001111,// TEST: 1110:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11101111, 0b10010110, 0b11101111,// TEST: 1110:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10001111, 0b10010101, 0b10001111,// TEST: 1110:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10101111, 0b10010101, 0b10101111,// TEST: 1110:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11001111, 0b10010101, 0b11001111,// TEST: 1110:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11101111, 0b10010101, 0b11101111,// TEST: 1110:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10001111, 0b10010100, 0b10001111,// TEST: 1110:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10101111, 0b10010100, 0b10101111,// TEST: 1110:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11001111, 0b10010100, 0b11001111,// TEST: 1110:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11101111, 0b10010100, 0b11101111,// TEST: 1110:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000001, 0b10100111, 0b10000001,// TEST: 0000:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100001, 0b10100111, 0b10100001,// TEST: 0000:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000001, 0b10100111, 0b11000001,// TEST: 0000:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100001, 0b10010110, 0b11100001,// TEST: 0000:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000001, 0b10010101, 0b10000001,// TEST: 0000:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100001, 0b10010101, 0b10100001,// TEST: 0000:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000001, 0b10010101, 0b11000001,// TEST: 0000:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100001, 0b10010101, 0b11100001,// TEST: 0000:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000001, 0b10010100, 0b10000001,// TEST: 0000:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100001, 0b10010100, 0b10100001,// TEST: 0000:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000001, 0b10010100, 0b11000001,// TEST: 0000:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100001, 0b10010100, 0b11100001,// TEST: 0000:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000011, 0b10100111, 0b10000011,// TEST: 1000:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100011, 0b10100111, 0b10100011,// TEST: 1000:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000011, 0b10100111, 0b11000011,// TEST: 1000:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100011, 0b10010110, 0b11100011,// TEST: 1000:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000011, 0b10010101, 0b10000011,// TEST: 1000:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100011, 0b10010101, 0b10100011,// TEST: 1000:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000011, 0b10010101, 0b11000011,// TEST: 1000:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100011, 0b10010101, 0b11100011,// TEST: 1000:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000011, 0b10010100, 0b10000011,// TEST: 1000:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100011, 0b10010100, 0b10100011,// TEST: 1000:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000011, 0b10010100, 0b11000011,// TEST: 1000:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100011, 0b10010100, 0b11100011,// TEST: 1000:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000101, 0b10100111, 0b10000101,// TEST: 0100:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100101, 0b10100111, 0b10100101,// TEST: 0100:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000101, 0b10100111, 0b11000101,// TEST: 0100:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100101, 0b10010110, 0b11100101,// TEST: 0100:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000101, 0b10010101, 0b10000101,// TEST: 0100:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100101, 0b10010101, 0b10100101,// TEST: 0100:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000101, 0b10010101, 0b11000101,// TEST: 0100:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100101, 0b10010101, 0b11100101,// TEST: 0100:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000101, 0b10010100, 0b10000101,// TEST: 0100:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100101, 0b10010100, 0b10100101,// TEST: 0100:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000101, 0b10010100, 0b11000101,// TEST: 0100:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100101, 0b10010100, 0b11100101,// TEST: 0100:1100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10000111, 0b10100111, 0b10000111,// TEST: 1100:0011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b10100111, 0b10100111, 0b10100111,// TEST: 1100:1011:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000111, 0b11000111, 0b10100111, 0b11000111,// TEST: 1100:0111:1 => 010 CMD_SET_ALL_AND_TEST_16, 0b10000110, 0b11100111, 0b10010110, 0b11100111,// TEST: 1100:1101:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10000111, 0b10010101, 0b10000111,// TEST: 1100:0010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b10100111, 0b10010101, 0b10100111,// TEST: 1100:1010:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11000111, 0b10010101, 0b11000111,// TEST: 1100:0110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000101, 0b11100111, 0b10010101, 0b11100111,// TEST: 1100:1110:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10000111, 0b10010100, 0b10000111,// TEST: 1100:0000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b10100111, 0b10010100, 0b10100111,// TEST: 1100:1000:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11000111, 0b10010100, 0b11000111,// TEST: 1100:0100:1 => 100 CMD_SET_ALL_AND_TEST_16, 0b10000100, 0b11100111, 0b10010100, 0b11100111,// TEST: 1100:1100:1 => 100

[свернуть]

А неуспешных много? Можно скриншот хотя бы одного?
16.06.2018, 13:33
HardWareMan

К155ИМ1 по версии Шило:
http://jpegshare.net/images/9c/b6/9c...833c4393fd.png
По версии TI могу сказать только через месяц.
16.06.2018, 13:57
Andrey_Ak

Цитата:

Сообщение от Trol73

А неуспешных много? Можно скриншот хотя бы одного?

http://tis.kz/temp/2018-06-18_10-02-58.flv
26.06.2018, 07:49
Alex_LG

Я может глупость скажу, но вы учли, что выв. 1/10 с ОК? Это видно по схеме - квадрат на месте соединения означает "монтажное ИЛИ", соответственно выход элемента "И-НЕ" должен быть с ОК. Поэтому это вход, который нужно "тянуть" к +5В.

Думаю HardWareMan не зрая привел схему по Шило ;)
26.06.2018, 10:20
Trol73

Цитата:

Сообщение от Alex_LG

Я может глупость скажу, но вы учли, что выв. 1/10 с ОК? Это видно по схеме - квадрат на месте соединения означает "монтажное ИЛИ", соответственно выход элемента "И-НЕ" должен быть с ОК. Поэтому это вход, который нужно "тянуть" к +5В.

Думаю HardWareMan не зрая привел схему по Шило ;)

Да, это учёл - ещё по самой первой схеме подумал, что если бы там не было выхода с ОК, то определённые комбинации входных уровней, вызвали бы микро-апокаллипсис с последующим выходом из строя :)
Ошибка должна быть в чём-то другом..
26.06.2018, 13:37
Alex_LG

По TI схема как у Шило
http://www.datasheetcatalog.com/data...4/SN7480.shtml
Есть еще нюанс мелким шрифтом
http://i.piccy_.info/i9/589fcf62a828...oard01_500.jpg http://i.piccy_.info/a3/2018-06-26-1...00x249-r/i.gif

- - - Добавлено - - -

Т.е. пины Меги, на которых "висят" выв. 1/10 нужно конфигурировать в Z-состояние или подать "1" если переключать А и В. Если "дергать" выв. 1/10, то должно быть А=В=0.
04.07.2018, 13:10
Trol73

Переписал тест

Скрытый текст

PHP код:

CHIP[14] 'ИМ1' POWER: -7* +14* IN: 3(P1), 8(A1), 9(A2), 12(B1), 13(B2), 11(~A4), 2(~B4) OUT: 4(~P2), 6(~S), 5(S), 10(~A3), 1(~B3) # LLL -> HHL TEST: 0:00:00:00 => 110:?? TEST: 0:01:01:00 => 110:?? TEST: 0:10:10:00 => 110:?? # LLH -> HLH TEST: 0:00:11:00 => 101:?? TEST: 0:01:11:00 => 101:?? TEST: 0:10:11:00 => 101:?? # LHL -> HLH TEST: 0:11:00:00 => 101:?? TEST: 0:11:01:00 => 101:?? TEST: 0:11:10:00 => 101:?? # LHH -> LHL TEST: 0:11:11:00 => 010:?? # HLL -> HLH TEST: 1:00:00:00 => 101:?? TEST: 1:01:01:00 => 101:?? TEST: 1:10:10:00 => 101:?? # HLH -> LHL TEST: 1:00:11:00 => 010:?? TEST: 1:01:11:00 => 010:?? TEST: 1:10:11:00 => 010:?? # HHL -> LHL TEST: 1:11:00:00 => 010:?? TEST: 1:11:01:00 => 010:?? TEST: 1:11:10:00 => 010:?? # HHH -> LLH TEST: 1:11:11:00 => 001:?? SET: 0 -> A1, A2, B1, B2, ~A4, ~B4 CONFIG: ~A3, ~B3 -> IN ; ~P2, ~S, S -> OUT # LLL -> HHL SET: 0 -> P1, ~A3, ~B3 TEST: 110 # LLH -> HLH SET: 0 -> ~A3 ; 1 -> ~B3 TEST: 101 # LHL -> HLH SET: 1 -> ~A3 ; 0 -> ~B3 TEST: 101 # LHH -> LHL SET: 1 -> ~A3, ~B3 TEST: 010 # HLL -> HLH SET: 0 -> P1, ~A3, ~B3 ; 1 ->P1 TEST: 101 # HLH -> LHL SET: 0 -> ~A3 ; 1 -> ~B3 TEST: 010 # HHL -> LHL SET: 1 -> ~A3 ; 0 -> ~B3 TEST: 010 # HHH -> LLH SET: 1 -> ~A3, ~B3 TEST: 001

[свернуть]
16.09.2018, 08:35
creator

рекурсия
16.09.2018, 16:06
ram_scan

Цитата:

Сообщение от Alex_LG

По TI схема как у Шило

Я в Шило сталкивался с ошибками и опечатками, поэтому как справочник для себя его похоронил. Чего всем и советую. К сожалению не помню где именно ошибки, но их там точно больше одной. Я наступал лично на эти грабли, разбирался ооочень долго, пока умные люди не подсказали что справочник "не той системы".
16.09.2018, 16:29
HardWareMan

Ошибки есть везде. Но такие критичные, чтобы выбросить я ни разу не находил в Шило. Головой надо пользоваться, а не тупо копировать. И справочник тут только помогает. Это я говорю потому, что в разные периоды пользовался разными, доступными в тот момент, источниками справочных данных одной и той же темы. И, например, многие не умеют переключаться с ЗППД на DMA, но те, кто работают головой - всегда без проблем.
18.09.2018, 12:23
ram_scan

Шило несколько раз переиздавался. В моем издании есть ошибки как минимум в распиновке одной микросхемы, а также были перепутаны названия и описания двух микросхем. Где-то не совпадало еще УГО и описание. К сожалению не помню каких именно, но на эти грабли я вставал лично. Заниматься сверкой Шило с другими справочниками я не счел нужным и просто перестал им пользоваться.

Кстати ошибки в "шиле" уже обсуждались у нас на форуме. И даже не мной.

Например 155ЛП8 в Шило в издании 1989 года нарисован как инверсный. А это неправда, ибо оно 74125.
25.10.2018, 16:59
siemensC35

Trol73, а можно попросить платку тестера первой резвизии в лут ибо я не умею конвертить
25.10.2018, 17:20
Trol73

Вложений: 1

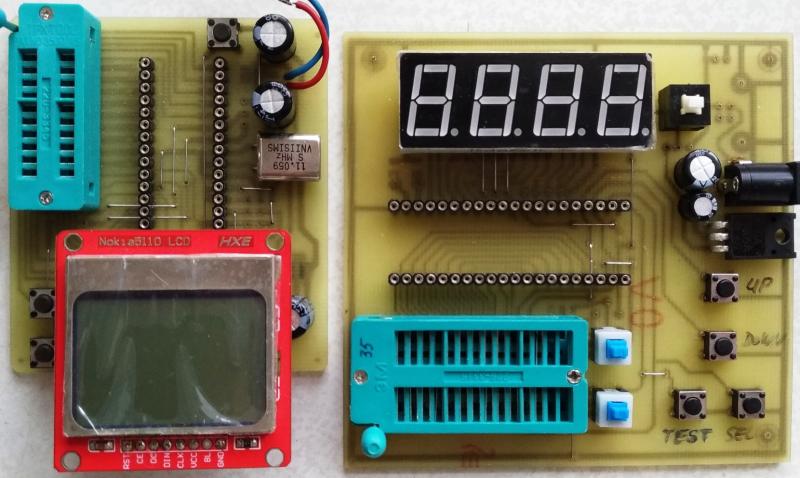

Вот герберы и png-шки Вложение 66681
06.11.2018, 05:43
Andrey_Ak

Эх... Надо-бы продолжить работы с тестером, точнее добавить имеющиеся ИС...
06.11.2018, 09:51
Trol73

Цитата:

Сообщение от Andrey_Ak

Эх... Надо-бы продолжить работы с тестером, точнее добавить имеющиеся ИС...

Да-да, было бы неплохо.. )
06.11.2018, 10:15
Tronix

Цитата:

Сообщение от Trol73

Да-да, было бы неплохо.. )

А на гитхабе исходники прошивки актуальные, или это для самой первой версии тестера?
06.11.2018, 11:06
Trol73

Цитата:

Сообщение от Tronix

А на гитхабе исходники прошивки актуальные, или это для самой первой версии тестера?

На гитхабе нет исходников, там только некоторые тесты
26.02.2019, 01:18
andreysur

Всем привет! Собрал тестер микросхем, ATMega8515 16PU, дисплей 5110 (красный). В сообщении #160 этой темы сказано, что прошивка выложена только для ATMega8515 32Р. Поэтому и не смог запустить прибор, т.к. только сейчас обнаружил эту информацию. Вопрос - есть ли где-нибудь прошивка для 16Р или надо ставить 32Р? На плате надо что-то менять или цоколевки одинаковы? Спасибо!
02.03.2019, 11:41
Andrey F

Цитата:

Сообщение от andreysur

только для ATMega8515 32Р.

Вы имеете ввиду АTMega32 16p наверно.
02.03.2019, 13:47
andreysur

Andrey F, Спасибо за ответ! Я собрал тестер с LED индикатором на ATMega8515 (всё работает), по аналогии думал (т.к. платы делал одновременно), что контроллер тот же, и просмотрел, что для тестера на 5110 д.б. другой контроллер - АTMega32. Заказал чип, что-то привезли, на следующей неделе посмотрю. Либо придётся заказывать на e-bay.
05.03.2019, 21:50
andreysur

Andrey F, Добрый вечер! Чип не привезли, на ebay.com есть такой - https://www.ebay.com/itm/ATMEGA32-AT...Wfdj:rk:1:pf:0
Это то, что нужно? В описании не указана версия 8PU, 16PU. Или же "32K FLASH" есть 32 PU?
05.03.2019, 22:26
Andrey F

ATMEGA32A-16PU иначе не запустится. Продавцу уточните. Но мой вам совет, приобретите плату у разработчика на АТМЕГА128. Намного удобнее.
05.03.2019, 23:14
andreysur

Вложений: 1

Andrey F, Спасибо за ответ! Д.б. эта версия -
https://www.ebay.com/itm/1PCS-MCU-IC...IAAOSwFytaH9vu ?
По поводу Atmega128 - м.б. потом. На ATMEGA32A всё собрано, только нужен "правильный" контроллер.

Вложение 68346
26.03.2019, 20:05
1Ж24Б

Собрал тестер на Atmega32 из начала темы. Прошивки брал из папки "05", контроллер Atmega32A-PU. Применил отрезок макетной платы, резисторы на выводы панельки под микросхемы (кроме питания и общего) 47 Ом, кварцевый резонатор 8 МГц. Дисплей 5110 показывает меню, при запуске теста заведомо исправной микросхемы (К155ЛА3, К555ЛА3) всегда выводит "Unknow" :v2_dizzy_facepalm: Распайку панельки проверил по электрической схеме из первого поста автора прибора, ошибок нет. Что не так ?
26.03.2019, 20:45
Trol73

Не проверят только ЛА3? Что с другими микросхемами? 1533 серию тоже не распознаёт?
26.03.2019, 21:23
1Ж24Б

Любая микросхема для тестера "Unknow".
26.03.2019, 21:46
Trol73

Ну тут тогда остаётся ещё раз пристально проверить схему.
И ещё можно попробовать прошивку v0.5 - она гарантированно рабочая.
Если ничего не поможет, остаётся подключаться по UART-у, добавлять логи в прошивку и разбираться.
p.s. уже не помню, какие резисторы ставил на выводе в первой версии, вроде, были меньше 47 Ом (но не уверен). Прошивку собирал только под кварцы 11.0592 и 16МГц, будет ли она работать под 8МГц - не проверял
26.04.2019, 11:32
fikus8

Тестер на Atmega128.
При подаче питания +5V с вывода платы ключей на вывод панели ZIF и выборе пункта меню "Configure" тестер гудит и на красном фоне появляется сообщение "Pull-down error" 40 (номер подключаемого к питанию вывода).
Земляные выводы конфигурируются.
С чем это может быть связано?
Плата тестера версии 2.0 2016.02. Прошивка 0.9.3.
Плата ключей 1.0 04.2016. Резисторы на ней 160 ом и 10к
Да, и после этого микросхема, которой необходима плата ключей, нормально тестируется.
26.04.2019, 12:16
Trol73

40й вывод не подтягивается к земле. Может быть связано либо с отсутствием/непропаем соответствующего подтягивающего резистора, либо с повреждённой атмегой128.
Плата ключей тут не должна играть роль.
Микросхемы нормально тестируются, т.к. 40й вывод обычно используется для питания, подтяжка ему, если и нужна, то редко.
26.04.2019, 13:09
fikus8

Так я питание подаю на 40 вывод, как в букваре.
На 26 ногу тоже подавал, чтобы ВВ55 протестировать. Та же ошибка, но потом все тестирует.

- - - Добавлено - - -

Подключаю только к разъемам земли платы ключей выводы 7,8,10,12 ZIF. --> Configure >
Промежуточное сообщение :v2_dizzy_botan: >
https://i.ibb.co/wBLgfgm/gnd0.jpg
Вроде все сконфигурировано.
https://i.ibb.co/qRqc2yg/gnd1.jpg
Подключаю 40 ногу ZIF к разъему питания платы ключей. --> Configure >
https://i.ibb.co/bJby4fv/40.jpg
Отключаю 40, подключаю 26 --> Configure >
https://i.ibb.co/56pSMbT/26.jpg

Плата ключей не сильно и нужна, но разобраться хотелось бы...
Без нее все работает. Тестирует память, операционники и т.д.
26.04.2019, 15:19
Trol73

Цитата:

Сообщение от fikus8

Так я питание подаю на 40 вывод, как в букваре.

Каким образом? Проводом от 5В напрямую, или от платы ключей?
Судя по первой фотографии - питание идёт напрямую, что неправильно.
26.04.2019, 15:54
fikus8

Конечно же, с платы ключей.
https://i.ibb.co/TwW8j6M/2019-04-26-at-15-49-53.jpg
